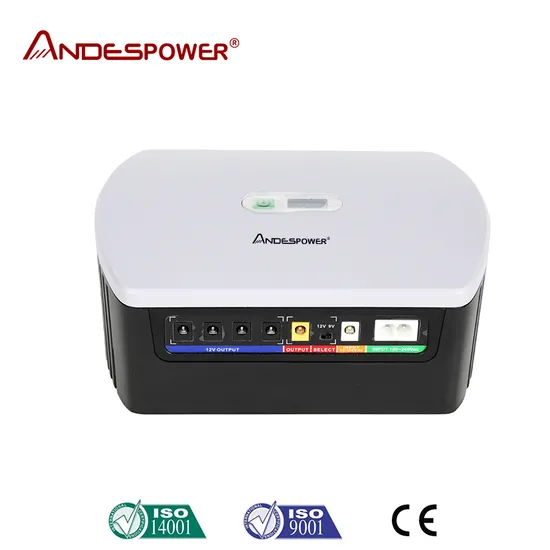

Mini DC UPS Dcf-120W for CCTV Camera Output 12V*10

Product Description

Features:
1) The cool electrical appearance, small size, high performance, stable parameters and rich practicality all in one;
2) Built-in adapter, widely AC input voltage range;
3) The ups has DC input, it also can be used with an external power adapter or solar panel;
4) Unique battery compartment design, it supports various capacity of lithium battery packs, the capacity can be expanded up to 165Wh, the back-up time will be longer.
5)High compatibility, built-in more DC voltage output, and it with a variety of interfaces, which can be used more widely. Such as mobile phone, wireless charging, IPAD, MP4, router, wireless WIFI bridge, Network switch, home humidifiers, CCTV, fingerprint machines etc.
6) LCD display for the working status of the machine;
7) DCF100W/DCF120W is designed by wall mounted type and tower type.
8) The built-in silent combined fan adopts intelligent speed control, which is quiet.
9) Full protection, it has discharge, overcharge, over current, overload, over temperature and short circuit protection.
Specifications:

Model	DCF-100W	DCF-120W
Input	100 ~ 240Vac 50/60Hz
	12 ~ 24Vdc(2.5A)
Output	5VDC + USB x2 (2.4A)	5VDC + USB x2 (2.4A)
	1 x 9V/12V (2A) (selectable)	1 x 9V/12V (2A) (selectable)
	10 x 12V(8A)	10 x 12V(10A)
Output power	100W	120W
Battery capacity	8000mah~52000mah (selectable)
Battery numbers	4 or 8 (selectable)
Battery type	18650(Lithium-Ion/LiFePO4) or 32700(LiFePO4) (selectable)
Operation temperature in working mode	0-40ºC
Operation temperature in discharge mode	0-50ºC
Unit dimension (mm)	214 X 158.5 X 85
Net Weight (kg)	1.85(max)

Product Review:
Front View
Rear View
Application
Company Profile
Certificates

---
