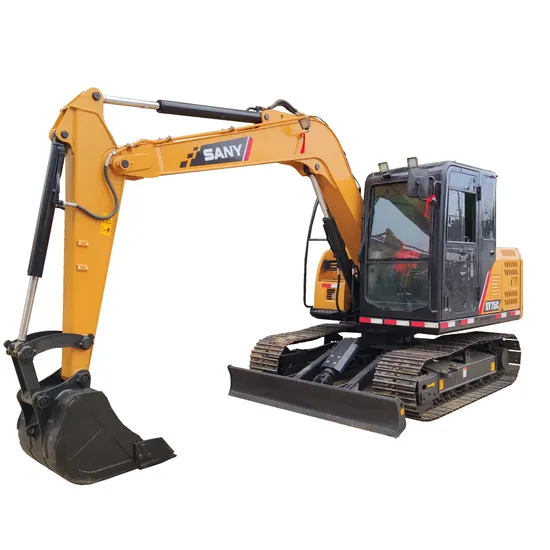

Sinomada 7ton Crawler Excavator Sy75c Small Excavator

US$36,500.00
1-4 Pieces
US$35,000.00
5+ Pieces

Basic Info.

Model NO.
SY75C
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE
Condition
New
L*W*H
6125*2220*2720mm
Max. Travel Speed
2.3/4.2km/H
Engine Rated Power
42.4kw
Ground Pressure
33kpa
Max. Digging Height
7390mm
Max. Digging Depth
4450mm
Max. Digging Radius
6505mm
Bucket Digging Force
53kn
Max. Gradeability
70%
Max. Torque
241n.M
Fuel Tank
150L
Transport Package
Provided
Specification
7280kg
Trademark
SINOMADA
Origin
China
HS Code
8429521200
Production Capacity
100units/Month

Product Description

Farster Operating SpeedA quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy consumption.High RealiabilityLoad Sensitive Flow Distribution System: Senses micro changes of the load and adjusts flow and pressure in real time; optimized main valve core for perfect synergism between actuators and precise control.Safe and Comfortable Operating EnvironmentThe newly-designed cab with much room and larger windows provides you with a wider view.Equipped with excellent sealing, the cab is free from dust, rain, and noise that effectively reduce the fatigue of operator.Reinforced BoomThe side plates are thicker than before and the ear plates are redesigned to reduce stress at the bending. The boom has stood the durability test and field (soil and rock mixture) digging test.
Model
SY60C(T4f)
SY75C(T4f)
SY95C(T4f)
Operating Weight
6T
7.28T
9.18T
Engine Power
42.4kW
43kW
53.7kW
Engine Model
4TNV98C
CP-4LE2X
4TN98CT
Engine Displacement
3.3L
2.179L
3.3L
Fuel Tank
130L
150L
160L
Radiator
5.6L
6.5L
12L
Hydraulic Tank
85L
120L
120L
Bucket Digging Force
45KN
56KN
63.6KN
Arm Digging Force
33KN
38KN
46.8KN
Carrier Wheel on Each Side
1
1
1
Thrust Wheel on Each Side
5
5
5
Standard Boom
3m
3.72m
4m
Standard Stick
1.7m
1.62m
2m
Bucket Capacity
/m³
0.28m³
/m³
