High Precision Changtong Rare Earth Magnet for Cutting

Product Description

Equipment Use: Unveiling a marvel of cutting precision and efficiency, this exceptional model is crafted for our esteemed clientele, featuring a roller length of 690mm and a table size of 170/145mm*690mm*160mm*2 version. It seamlessly manages products with thicknesses from 0.3mm to 65mm, ensuring precision and efficiency with every cut.

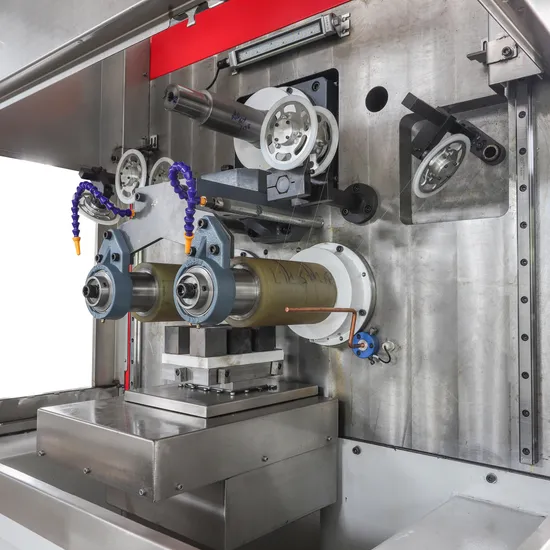

Introducing the CHTXQ-690F Double Plate Multi-Wire Cutting Machine - A Marvel of Engineering and Efficiency.
1. Empowered by four independent motors driving each roller, this cutting-edge design significantly reduces steel line wear on rollers, optimizing longevity. With precision-crafted processing center molding, the roller bracket mounting hole satisfies all spindle installation coaxial requirements, offering unmatched precision.
2. Featuring an optional LED display, this advanced equipment enhances user interaction with intuitive data visualization, simplifying the cutting process for operators and elevating user experience.
3. Distinctive under-table design allows for convenient bottom-up material loading, streamlining the loading and unloading processes to enhance operational efficiency.
4. Available in two models: the high-speed machine and the standard version. The high-speed variant impresses with increased line speeds and superior cutting efficiency, enabling the use of thinner diamond lines on similar materials.
5. Equipped with transverse movement capability, the table effortlessly glides back and forth, perfect for tile cutting and introducing an innovative single-line cutting function.
6. Featuring an extensive loading area of 170/145mm*690mm*160mm*2 version, this design vastly enhances cutting efficiency, effortlessly accommodating larger volumes.
7. With spindle accuracy within ≤0.01mm and an innovative patented dust structure (Patent No. ZL201320681902.7), the machine guarantees stable operation with easy disassembly, promising reliability and precision.
8. User-friendly and intuitive, the machine is equipped with an automatic lifting shield and a fully expanded workbench, facilitating seamless material handling and roll loading.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This sophisticated double-station multi-wire cutting machine integrates diamond wire processing capabilities, enabling simultaneous processing of two plate materials. With a roller length of 690mm and a maximum cutting area of 220mm*690mm*160mm*2 version, it offers dual functionality for both single-line and multi-line cutting, ideal for batch processing of hard and brittle materials into straight sheets.
This model stands as a pinnacle of engineering in multi-line cutting machines tailored for diamond line processing. With a roller length of 570mm, it accommodates a maximum cutting area of 220mm*570mm*160mm. Featuring a rotary tool holder, it efficiently slices through products ranging from 0.3mm to 65mm in thickness, making it perfect for batch processing of hard and brittle materials.
Introducing our petite multi-line cutting machine, ingeniously designed for diamond line processing, available in single and double station models. Perfect for small batch processing of straight sheets, it offers seamless specification changes and efficiently handles cutting sheet thicknesses from 0.5mm to 30mm, providing both single-line and multi-line cutting functions for hard and brittle materials.

> Stable Wire Web Control - Elevating Precision to New Heights.
The rollers and wire spools are meticulously engineered with a cone-positioned structure, delivering exceptional accuracy and rigidity to effectively manage wire web shaking, ensuring stable and reliable performance.
> Optimized Pulley System - Ensuring Smooth Operation and Longevity.
With a pioneering 8-pulley design, this system dramatically minimizes diamond wire torsion, reduces tension fluctuations, and lowers the wire breakage rate, guaranteeing smooth and dependable operations.
> Effortless Wire Winding - Simplifying Maintenance and Usage.
The wire pay-off wheel utilizes the universally accepted standard spool (PV600 reinforced I-wheel), eliminating the need for rewinding, significantly boosting operational efficiency.
> Safety Guarantee - Prioritizing Operator Safety and Ease of Use.
The main operation door features an electrically operated lift equipped with a built-in safety device, providing assurance and peace of mind during use.
> Wire Break Memory System - Revolutionize your operations with our Wire Break Memory System, engineered to reduce downtime dramatically while maximizing your productivity, ensuring seamless and uninterrupted workflow efficiency.
> Easy Operation - Crafted with precision, this product is designed to offer unparalleled ease of use, putting the needs of the user first for a truly intuitive experience.
The cutting room features a cutting-edge open design on three sides, which significantly enhances accessibility for operations and maintenance. This innovative layout not only streamlines processes but also substantially reduces downtime, leading to more efficient and effective production.

---
