Full Automatic Paper Cup Bowl Packing and Case Erector Tape Sealing Machine

Product Description

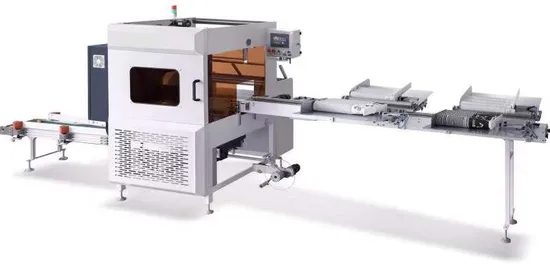

YB-520 Horizontal packaging machine - four stations
Equipment introduction
1. Cup feeding: after the paper cup is counted by the cup counting frame, it falls down and slides onto the cup table. After the optical eye detects a cup, the cup turning mechanism pours the paper cup on the rope and send it to the top of the heat sealing splint;
2. Film feeding: when the optical eye detects a cup, it sends a pulse to the servo driver after being recognized by the PLC program, and sends out the corresponding length film according to the different caliber of the cup;
3. Heat sealing: the hot air splint opens, the cup down, the splint closes, and the heat sealing knife heat seals the film to complete the bag sealing process;
4. Cup output: the sealed cup drops onto the rear conveyor board, and cups of different specifications are dropped into the box from the corresponding cup outlet according to the memory function of PLC program to complete cup collection.
Characteristics of equipment mechanism(1)
The use of mechanical and pneumatic execution makes the incision more firm and beautiful. Compared with other supplier's machines, the noise is less, the machine vibration is less, and the adjustment is more convenient. In addition, the cutter uses special materials and quenching process to make the cutter more durable, and PE, OPP, PP, POF films and other types of packaging films can be effectively used. And the cutting knife crosses the iron boiling dragon, which makes the packaging machine effectively prevent the film from sticking when running, and it is more convenient to clean.
Characteristics of equipment mechanism(2)
The design of servo motor film feeding mechanism makes the film feeding more accurate. When it is produced online with multiple units of paper cup machines, the film length can be set in groups, which is more suitable for paper cups of different sizes and packaging sizes and saves film materials.
Characteristics of equipment mechanism(3)
The film supporting mechanism adopts the form of floor support, which is more convenient and faster than traditional machines for threading and loading film. It can bear the weight of film and has less restrictions on the size of film materials, and can be loaded with larger packaging film.
Characteristics of equipment mechanism(4)
The imported international brand PLC programmable controller and touch human-machine interface make the operation easier.
Ten advantages of equipment 4 independent motor control (servo motor is used for the feeding mechanism, which can feed, discharge and collect waste) Motion controller for fast response to various commands Precise positioning of products Independent temperature control module controls the temperature, and the heating is more stable and uniform 304 stainless steel is used for the part in contact with the product All of the electrical components used international brands Anti empty bag function: start with material and stop without material, save packaging film, and prevent untimely discharge and waste of packaging film One machine can produce different specifications and sizes of different paper cup machines online Automatic shutdown alarm for insufficient air pressure of equipment to reduce material waste It has cooperated with domestic first-line brand paper cup manufacturers for many years, and has cooperated with many domestic paper cup manufacturers to make users feel more at ease and have stable and reliable quality.
Technical parameters of equipment - four stations

	Model	YB-520B
	Speed	10-15 bag/min(The characteristics of products and membranes may affect the output of the machine)
	Cup bottom size	Ø65-Ø100,Ø100-Ø145
	Package height	250----550mm
	Material of packing film	OPP PE PP POF
	Thickness of packing film	15----30um
	Total power	2.8KW
	Electrical power	220V 50HZ
	Air supply	≥0.5 Mpa
	Weight	800kg
	Machinery size	6000*1600*1730mm machine size 1610*1600*1730

Schematic diagram of four stations of equipment
Technical parameters of equipment - two stations

Model	YB-520B
Speed	10-20 bag/min(The characteristics of products and membranes may affect the output of the machine)
Cup bottom size	Ø65-Ø100,Ø100-Ø145
Package height	250----550mm
Material of packing film	OPP PE PP POF
Thickness of packing film	15----30um
Total power	2.8KW
Electrical power	220V 50HZ
Air supply	≥0.5 Mpa
Weight	650kg
Machinery size	4000*1600*1730mm machine size 1610*1600*1730

Technical parameters of equipment - six stations

Model	YB-520B
Speed	10-15 bag/min(The characteristics of products and membranes may affect the output of the machine)
Cup bottom size	Ø65-Ø100,Ø100-Ø145
Package height	250----550mm
Material of packing film	OPP PE PP POF
Thickness of packing film	15----30um
Total power	2.8KW
Electrical power	220V 50HZ
Air supply	≥0.5 Mpa
Weight	950kg
Machinery size	8000*1600*1730mm machine size 1610*1600*1730

parts	brand	number	Place of Origin
PLC	Schneide r	1 set	France
Touch screen	Schneide r	1 pcs	France
Temperature control template	Schneide r	1 pcs	France
servo motor	/Delta/Schneide r	1 set	China/France
Photoelectric switch	Schneide r	6pcs	France
Intermediate relay	Schneide r	6pcs	France
Main pneumatic components	Runjia	1 set	China
Note: the above is for reference only, please refer to the actual equipment configuration.
