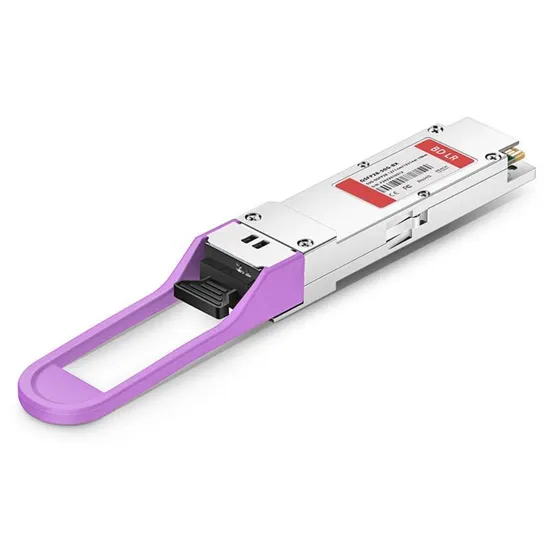

Generic Compatible 50gbase-Bx-U Qsfp28 1271nm-Tx/1331nm-Rx 10km Dom Simplex LC/Upc SMF Optical Transceiver Module

Product Description

Product Description
Generic Compatible 50GBASE QSFP28 transceiver supports up to 10km link lengths over OS2 SMF via a LC simplex connector. This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters via the I2C interface. This transceiver is compliant with QSFP28 MSA, IEEE P802.3 standard, and is suitable for 50GBASE Ethernet, 5G Network Mid/Backhaul applications.
Highlight
Built-in Broadcom Chip, Max. Power Consumption 3.5W Tested in Targeted Switches for Superior Performance, Quality, and Reliability Double Your Bandwidth by Using Only One Fiber for Transmit and Receive High-Speed Electrical Interface Compliant to IEEE P802.3 Hot Pluggable QSFP28 MSA Compliant Class 1 FDA Laser Safety and RoHS Compliant Digital Optical Monitoring Capability for Strong Diagnostic Capabilities Specification

Form Factor	QSFP28	Max Data Rate	53.125Gbps
Wavelength	1271nm-TX/1331nm-RX	Max Cable Distance	10km
Connector	Simplex LC	Media	SMF
Transmitter Type	LAN-WDM	Receiver Type	PIN
TX Power	-4.5~4.2dBm	Receiver Sensitivity	<-10.8dBm
Power Budget	6.3dB	Receiver Overload	5.2dBm
Power Consumption	<3.5W	Extinction Ratio	3.5dB
DDM/DOM	Supported	Warranty	5 Years

Application
Direct Connection for 25GBASE-SR SFP28 Transceivers in 5G Network Fronthaul
Feature
Providing Fast 5G Connectivity with 50G QSFP28 A 5G network architecture can benefit from the use of 50G QSFP28 for midhaul and backhaul, which meets the needs for high bandwidth and low costs of 5G carrying.
