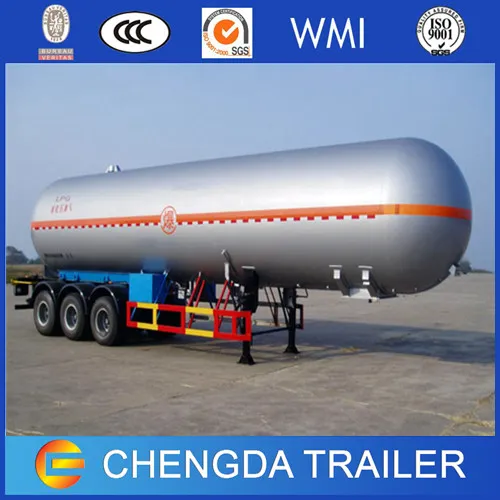

3 Axles 56m3 LPG 60000 Liters Gas Tank Tanker Semi Truck Trailer

Product Description

Tanker Essential Information for China 3 axles 56m3 LPG Tanker Semi Trailer
1	Dimensions(length*width*height)	13000*2500*3995(mm)
Shell Of Tanker payload 24.486T
1	Products	LPG, Butane , Propane
2	Fluid property	flammable
4	Design temperature	-40°C to 50°C
5	Design pressure	1.61MPa
6	Corrosion allowance	1.0mm
7	Major materials of bearing pressure	Tanker body : Q345R , 12.5mm
		End plate : Q345R , front:10mm,Rear:12.5mm
		Main Beam : T700
8	Filling weight per volume	420Kg/m3
9	Compartments	One
10	Baffle inside the tank	14-off Aluminum bolted plate , thickness is 6mm
11	Shape	Cylindrical ; Ellipse head
Detection
1	Heat treatment	Overall heat treatment in a furnace , 500°C to 560°C
2	Flaw detection	100% Flaw detection
3	Hydrostatic test	2.1MPa
4	Magnaflux	Aim at welding place flaw detection can not cover
Safety Valve (As customer's requirement )
1	Quantity	Two
2	Location	On the top of tanker ;
3	Type	Only weld suitable flange
4	Size	As customer's requirement
Running System
1	Axles	3	13 TON FUWA Axles
2	Suspension system	1	FUWA Air suspension
4	Tyre	7	Brand : Triangle,12 R22.5 vacuum
5	Kingpin	1	90#/50#
6	Landing legs	1	28Ton FUWA

Company information:
Shandong Chengda Trailer Manufacturer Co.,Ltd. Established in 2005 is one of the qualified manufacturers of various trailers.

ChengDa workshop area of 45 acres, 3000 square meters, the output of 800 ~ 1000 semi - trailers per month, five production lines, 150 employees at present.

We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
Our semi trailer :
box semi trailer:side wall semi trailer, stake semi trailer, fence semi trailer,
van semi trailer, cargo semi trailer
flatbed semi trailer: lowbed semi trailer, lowbed semi trailer with ladder stand,
flat bed semi trailer for container
tanker semi trailer: fuel tanker semi trailer, bulk cement tanker semi trailer
dump semi trailer: end dump trailer, side dump semi trailer, flatbed dump trailer
and semi van dump
truck and tractor: sinotruk and shacman truck and tractor head

Our services : As a semi trailer manufacturer, we provide customized semi trailer
1. Based on your requirement, we provide the satisfied top, middle and econmic semi trailer.
2. We select the best material suppliers as partners, from raw materials, production, shipments are tracking records.
3. The full aspect service from order to shipping;
4.The most suitable advice when customer has special needs for your transportation;
5.The related spare parts of trailer or tractors,shipping together with discount price 2%.
we are waiting for you to get this ideal products and best quotation!
Contact
Jane Shi
Sales Manager
Shandong Yuncheng Chengda Trailer Manufacturing Co. Ltd.


If you have any problem, pls send inquiry to us immediately, thanks!

---
