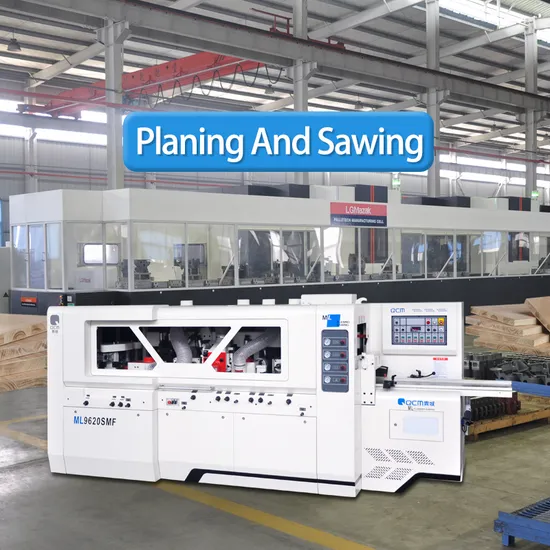

ML9620SMF Planing and Sawing Woodworking Machinery Wood Planer Saw Machine

Product Description

ML9620SMF Planing and Sawing Woodworking Machinery Made In China Factory Manufacture Supplie Electric Wood Planer Surface Planer Combined Circular
Product Parameters

Technical Parameter
Model	Planing and Sawing Combination Machine	Unit	ML9620SMF
Specifications	Working width	mm	20~200
	Working thickness	mm	10~120
	Min. working length (single / continuous)	mm	650/480
	Bottom cutter Dia.	mm	Φ125
	Right & left vertical cutter Dia.	mm	Φ110~ Φ180
	Upper cutter DIa.	mm	Φ110~ Φ180
	Left & right saw blade Dia.	mm	Φ180~ Φ300
	Saw spindle Dia.	mm	Φ50
	Saw spindle speed	r/min	4000
	Planer spindle Dia.	mm	Φ40
	Planer spindle speed	r/min	6800
	Feeding speed	m/min	6~30
Motor Power	Left, right spindle, upper horizontal spindle motor	kW	3x7.5
	Left, right saw spindle motor	kW	2x18.5
	Total power	kW	72.75
	Feeding motor	kW	5.5
	Rear auxiliary feeding motor	kW	2x0.75
	Beam lifting motor	kW	0.75
Pressure & Diameter	Air supply pressure	MPa	0.3~0.6
	Suction hood Dia.	mm	6x Φ150
Dimensions & Weight	Overall dimension	mm	4420x1790x1750
	Weight	kg	4850

Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. Anti-Rebound Safety Device
The anti-rebound safety device located on the infeed ensures operational safety.

3. Wear Resistance Guide Track
The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance;

4. Automatic lubricator
The automatic lubricator delivers frequent lubrication oil to the chain.

5. Dust Removal Brush
The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.

6. High Precision Spindle
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
7. Professional Electrical Appliances
Siemens and Schneide electrical products and appliances insure the whole machine run well with a stable performance.
8. Cast Iron Chromed Feed Table
The entire Cast Iron - Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
Product Description
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.

---
