Lab Size Reduction Machinery

Product Description

Lab Size Reduction Machinery

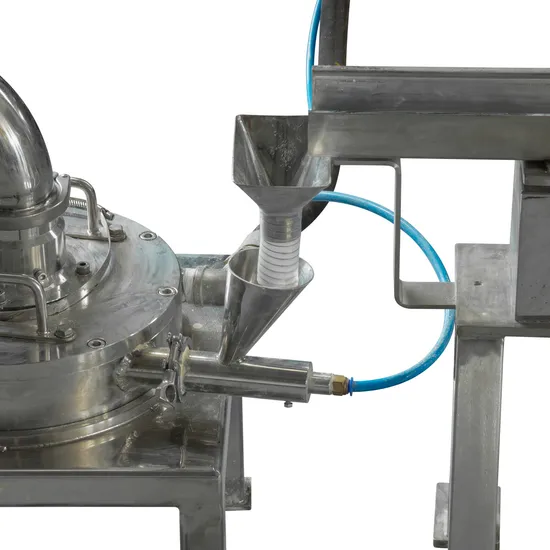

Product Description The high pressure air flow, as the crushing kinetic energy, enters the stabilized gas reservoir at the periphery of the crushing chamber as the gas distribution station. The air flow is accelerated into the supersonic air flow through the Laval nozzle and enters the grinding chamber. At the same time, the material is accelerated into the grinding chamber through the Churi nozzle for synchronous crushing. Because the Laval nozzle and the crushing chamber are installed at an acute Angle, the high-speed jet drives the material to do circulation movement in the crushing chamber, and the particles and the particles and the fixed target wall surface have mutual impact, collision and friction to crush. Driven by centripetal air flow, fine particles are introduced into the central outlet pipe of the crusher into the cyclone separator for collection, and the coarse powder is thrown to the wall of the grinding chamber for circulation movement under the action of centrifugal force and continues to crush.
Performance & Characteristics 1, Contains horizontal classification device, vertex cutting accurate, product particle size D97:2-45 microns adjustable, good
particle shape, narrow particle size distribution.
2, Low temperature medium free grinding, especially suitable for heat sensitive, low melting point, sugar content and volatile
materials grinding.
3, The equipment is easy to disassemble and clean, and the inner wall is smooth without dead corners.
4, The whole system is closed and crushed, less dust, low noise, clean and environmentally friendly production process.
5, The control system adopts program control, easy to operate.
Flow Chart
Product Parameters

/ Parameters/Model	BQF-50	BQF-100	BQF-200	BQF-300	BQF-400	BQF-600
Mpa Milling Pressure	0.65-0.95
m3/min Air consumption	1 - 1.25	1.75 - 2.2	3.3-3.5	6-7.5	10 - 13	25 - 32
KW Air compressor power	11	15	37	55	75	132
Kg/h Handle capacity	0.2 - 1	0.5 - 5	5-30	10-50	50 - 150	300-600
Kg weight	60	140	55	80	180	330
mm Dimensions	890×750×868	1050×500×1380	1700×650×1580	510*510*630	890×750×868	1000X1000X900

Detailed Photos Our Factory

---
