Single Head Hand Polishing Machine for Marble Granite Surface

Product Description

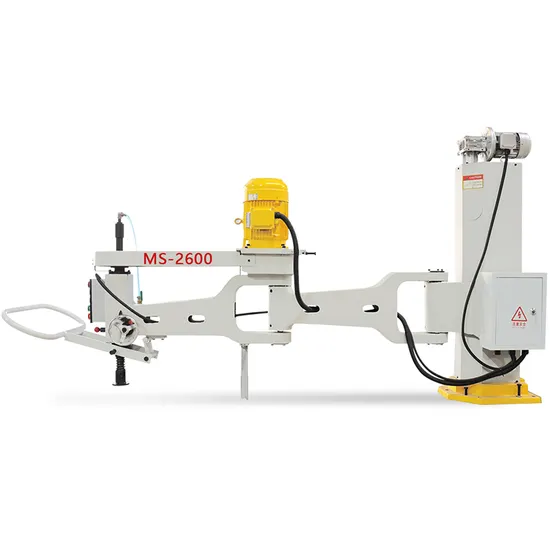

Single Head Hand Polishing Machine for Marble Granite Surface MS-2600 Polishing MachineThis machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the client's choice. It is applicable to surface grinding and polishing of granite and marble. especially for tombstones, slabs and mosaic.
Available for Arc slab polishing as well if assorted with table.
Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4.Touch sensitive Panel Easy for worker to operate.
5. 8-9 sqm per hour for medium hard marble with 20-30mm thicknesss.
Technical Parameters

Model		MS-2600
Gyro radius	mm	2600
Range of vertical stroke	mm	0-800
Grinding wheel diameter	mm	220
Overall dimensions (L x W x H)	mm	3500 x 650 x 1700
Main motor power	kw	5.5
Water consumption	m³/h	3
Approximate weight	kg	850

Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling. Professional Team
23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.
Company Information Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 22 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Wanlong Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. More than 22 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

Following products are supplied:
1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.
2. Dry cutting & turbo saw blade.
3. Diamond wire and beads for granite & marble.
4. Polishing abrasive.
5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.
6. Bridge Cutting Machine & Auto Polishing Machine, etc.
1).QSQ-2200/2500 Bridge Multiblade Block Cutter 2). QZQ-900/1200 Bridge Cutting Machine
3).PLC-400/600 Laser Bridge Cutting Machine
4).MS-2600/3000 Polishing Machine
5).SY-S80 Hydraulic Pressing Machine, etc.

---
