Sharpening Machine for Tct Circular Saw Blade

Product Description

Latest large diameter saw blade grinding machine sharpening tooth face&top CNC
Machine features
1) Used for grinding tct saw blade tooth top and face. Multi-function model can grind hook angle, face bevel angle, top angle and top bevel angle. This one is able to grind saw blade up to 800mm. 2) Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically
3) High accuracy: <0.02mm or even better. Four axis servo motor to realize satisfactory sharpening performance
4) Good stability: use specially treated cast iron base, no deformation,low vibration,long term use.
5) High efficiency: 1~20mm/s adjustable grinding speed.
Machine parameters

Model	TF800
Saw blade diameter	110~800mm
Hook angle	-8°~ 27°
Top angle	8°~30°
Chamfer angle of top	-45°~45°
Chamfer angle of face	-30°~30°
Bore diameter	12-120mm
Pitch	<105mm
Wheel diameter	125mm*32mm
Wheel speed	4000~5000r/min
Grinding accuracy	<0.02mm
Grinding speed	1~20mm/s
Power	4KW
Dimensions	2000 X1300 X2030mm
Weight	1900kg

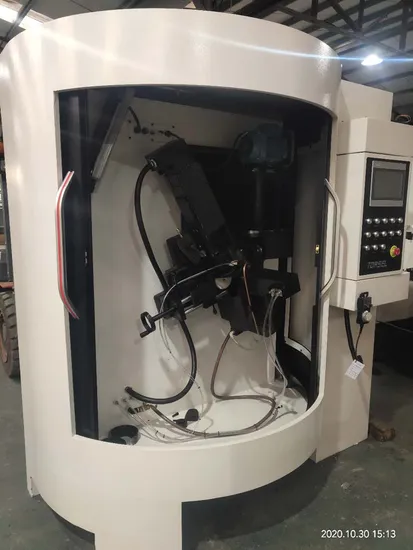

Machine pictures
Grinding top and face

Exhibition show
FAQ
1. What products do we have?
Four categories saw blade grinding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct saw blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct saw blade.
3. grinding machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct saw blade.
4. cold saw blade grinding machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our sawblade grinding machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
