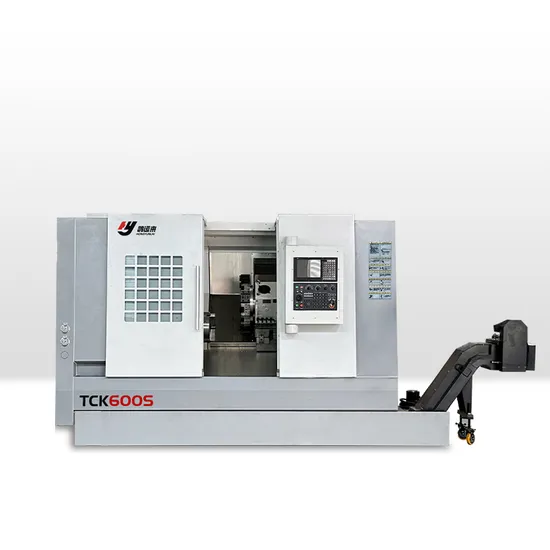

CNC Horizontal Lathe Metal Cutting Machine Tool Tck600s Certified by CE

Product Description

CNC Horizontal Lathe Metal Cutting Machine Tool Tck600s Certified by CE Product Description
1. Special machine for brake discs, suitable for disc processing
2. 15 kW high torque spindle, 12-station turret, A2-8 spindle
3. Roller guide rail, rigidity guaranteed
Product Parameters

project			unit	Specification	Remark
Maximum rotation diameter on the bed			mm	600
Maximum cutting length			mm	500
Maximum cutting diameter			mm	550	12 stations (diameter of the opposite side of the cutter head is 450, the center height of the turret is 125)
Standard cutting diameter			mm	430
Maximum turning diameter on the slide			mm	380
Spindle end type and code				A2-8	Spindle unit
Spindle hole diameter			mm	80
Maximum passing bar diameter			mm	70
Single spindle	Spindle speed range/spindle maximum output torque		r/min/Nm	50~3500/215
Headstock
Main motor output power	30 minutes/continuous		kW	18.5/15
Standard chuck	Chuck diameter		inch	10²
X-axis travel			mm	300
Z-axis travel			mm	550
Standard tool holder				Horizontal 12-station servo
Tool size	External circular knife		mm	32×32
	Boring bar diameter		mm	Ф50
	End tool holder		mm	32×32
Can I choose the knife nearby?				Can
Machine gross weight		Total weight	kg	4300
weight capacity	Disk Parts		kg	350 (including chuck and other machine tool accessories)
	Shaft parts		kg	820 (including chuck and other machine tool accessories)
Machine tool dimensions (length × width × height)			mm	2790×1900×1850

Detailed Photos

Machine structure 1.Integrated casting bed body, resistant to tension and earthquake resistance. 2.45 ° inclined bed for more convenient chip removal.

Servo Turret 1. Standard: Horizontal 12''inch servo turret 2. Optional: Live turret

Hydraulic tailstock 1. Standard with hydraulic tailstock 2. Can choose Programmable tailstock driven by servo motor

Spindle motor 1.15KW Spindle motor ,Spindle output torque235N.m 2.Optional: 30KW motor spidle

Company Profile

Certifications

Packaging & Shipping

FAQ

1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company? A: We specialized in all kinds of machines ,such as CNC Lathe Machine , Vertical Machining Center ,Lathe Machines and so on . 3: Where is our factory located? How can I visit there? A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms? A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight . 6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) 7: What about your warranty? A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free 8:How do you offer after-sale service? A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.

---
