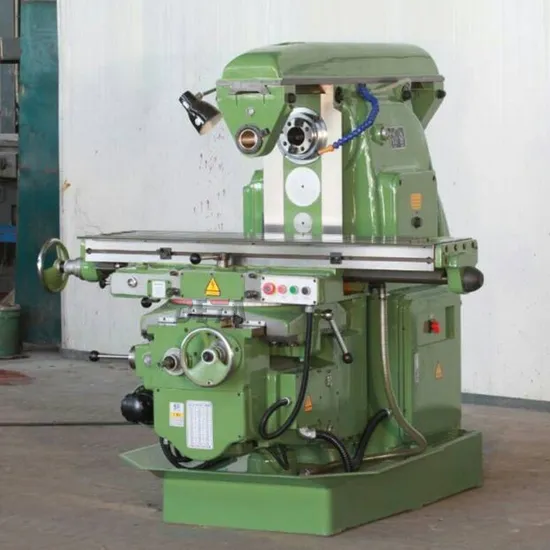

Horizontal Universal Knee Type Milling Machine X6140 for Metal Processing

Product Description

Horizontal universal knee type milling machine X6140 for metal processing
Standard accessories:
Horizontal milling cutter arbor
Horizontal milling drawbar
ISO50 milling chuck
ISO50 milling arbor
Taper sleeve
Foundation bolts
Double head wrench
Single head spaner
Inner hexagon spanner
Optional accessories:
Sino 3-DRO
vertical milling head
vice 160mm
dividing head F11125A
slotting head
Product Parameters:

Model	Unit	X6140
Table size	mm	1700x400
No.of T-slots		3
Width of T-slots	mm	18
Max. Rotary angle of worktable	°	±45°
Max.load	kg	800
Longitudinal travel(manual/auto)	mm	900/800
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	350/330
Table feed range(X/Y/Z)	mm/min	23.5-1180/23.5-1180/8-394
Rapid feed speed	mm/min	2300/2300/770
Spindle taper		ISO50
Spindle speed range	r/mm	30-1500
Spindle speed step	steps	18 (steps)
Distance between spindle axis table surface	mm	30-380
Power of spindle motor	kw	11
Overall dimension(LxWxH)	mm	2556x2159x1770
Net weight	kg	3850

TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.

---
