Double Masts Hydraulic Aerial Work Platform

Product Description

•Double Masts Aerial Work Platform:
Application: It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
• Features:
1.Two people allowable,small footprint,less weight,easily moved.
2.Able to access to limited passageway.
3.The most ideal equipment for aerial work to replace ladder or rigger, with high efficiency and more security.
• Standard Configuration:
1.Power supply: single phase AC(AC220V)
2.Move mode: manual
3.Driving unit: one unit hydraulic pump,small volume and less noise
Others
1.Brand-new Yellow-Black Upgraded model,much safer and more stable
2.Hand shank enables easy steering
3.Leveling of platform is guaranteed by adjusting outrigger with screws
4.Electric limit switch shall cut off power when up limit is reached
5.Ground/platform control modes are available,rendering possibility of one operator
6.Stroke protection block is built in hydraulic cylinder for security
7.Emergency lowering system is equipped outside
8.Anti-skid staircase is provided
9.Leveling indicator is equipped
• Optional Configuration:
Power supply: Battery DC with charger,suitable for outdoor operation
Move mode:
1.Electric moving device is equipped in case of long distance travel

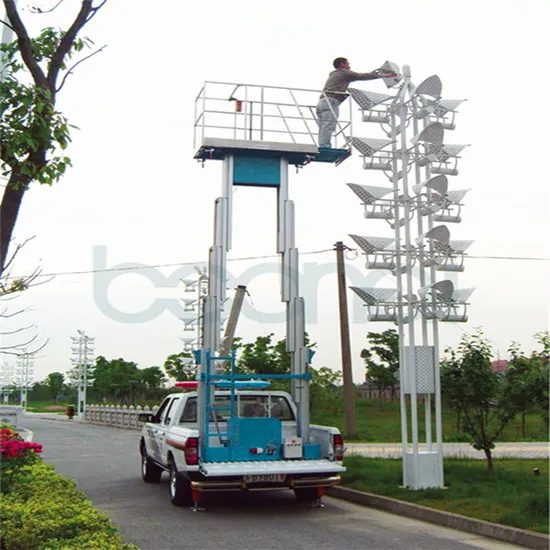

2.Could be built in carriage of truck
3.Trailer base could be provided in case of outdoor operation
Others
1.Extended platform(not for B type)
2.Insulated platform
3.Explosion-proof electrical system
4.Overload alarm
5.Outrigger limit switch
6.Tilt alarm
7.AC power to platform
8.Working alarm
9.Rubber dust stop
10.Explosion-poof valve for oil tube
• Pictures:
• Parameters:

Model	Max Platform Height (m)	Max Working Height (m)	Rated Load (kg)	Platform Size (m)	Lifting Motor		Weight (kg)	Overall L*W*H (m)	Outrigger Size (m)
					AC (VAC/kw)	DC (VDC/kw)
GTWY6-200	6	8	300	1.18*0.62	220/1.1	24/0.8	420	1.38*0.83*1.62	1.85*1.72
GTWY8-200	8	10	250	1.18*0.62	220/1.1	24/0.8	520	1.38*0.83*1.86	1.85*1.72
GTWY9-200	9	11	250	1.18*0.62	220/1.1	24/0.8	570	1.38*0.83*2.00	1.85*1.72
GTWY10-200	10	12	200	1.38*0.62	220/1.1	24/0.8	640	1.58*0.83*2.00	2.15*1.89
GTWY12-200	12	14	200	1.38*0.62	220/1.1	24/0.8	680	1.58*0.83*2.25	2.56*2.55

• Company Certificates:
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holidaysm engineers are available to your company if necessary.

---
