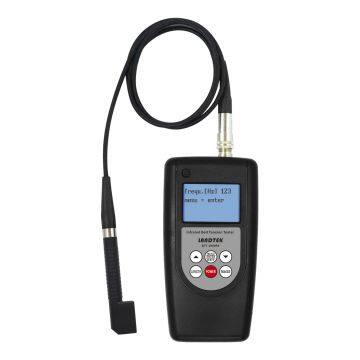

Infrared Belt Tension Tester BTT-2880R5
Applications:
The Infrared Belt Tension Meter can measure the belt tension of motor and other machines quickly.
Features:
* Using laser sensor, direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.
Principle:
This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.
Details:
Measurement Range:10~500Hz
Input Range:
Free Belt Length Max 99.99m
Belt Mass Max 9.999kg/m
Digital Sampling Error:<1%
Display Error:±1Hz
Total Error:<5%
Operating Temperature Range:+10~50°C
Transportation Temperature Range:-5~70°C
Unit of Measurement:
Metric: m, kg/m, N
Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance:3~20mm
Depth of Split Sensor:About 66mm
Power Supply:4x1.5V AAA (UM-4) Battery
Size:
Main Unit: 178x72x34mm
Sensor: 124x21x12mm
Weight:180g (Not Including Battery)
Standard Accessories:
Main Unit
Split Sensor
Carrying Case (B04)
Operation Manual
GUANGZHOU LANDTEK INSTRUMENT CO LTD is the real professional manufacturer of meters and instruments in China.
To Lisa Li
Email / Skype: lisali0428@outlook.com
For more details,please feel free to contact Lisa.Thank you!
>>
