Shenzhou Sludge Decanter for Waste Water Treatment in Industries

Product Description

Decanter Centrifuge Applies in wwtp
The excess sludge from the sludge storage tank (primary and secondary sedimentation) is pulverized by a sludge cutter to smash the glass, the braid and the like. The sludge pump sends the sludge (concentration 0.5~4%, higher) into the centrifuge, and the automatic flocculant dosing device for continuous batching is added to the mud pipeline through the dosing pump (concentration 1 ~ 3 ‰) flocculant solution, and flocculation in the vicinity of the feed tube, into a floc into the centrifuge. The dehydrated mud cake is discharged from the rotating drum by a screw conveyor, and the mud cake is discharged to the outside through a screw conveyor.
The dehydration system is widely used in oxidation ditch, AB, A/O, A2/O, SBR, MBR and other processes as well as urban domestic sewage, municipal sewage, landfill leachate, urban tap water, purified water and some industries required by traditional sewage treatment processes.
For water purification plants and sewage treatment plants, high-performance centrifuges for water treatment are an ideal solution. They are highly adaptable to sludge and have greater processing capacity at low concentrations (SS 0.5), it is not necessary to equip the concentrator, and the dehydration function can be realized, which satisfies the requirements of the process for integration of concentration and dehydration. The unique centrifuge structure, advanced control system, and standardized design of SZ separation decanter centrifuge take into account the user's later operating costs (pharmaceutical consumption, power loss, and routine maintenance of the equipment, etc.).
Decanter centrifuge is also known as decanter screw drum centrifuge, which produces separation force through high-speed rotation. It can clarify liquids and separate solids from one or two liquid phases in a single continuous process. It has the characteristics of continuous operation, stable operation, strong adaptability and large production capacity. Decanter Centrifuge Product Series decanter centrifuge has a rich product line, which can be used for solid-liquid separation in a variety of industries. decanter centrifuge has ordinary, food-grade and explosion-proof grade series products, our equipment has the characteristics of compact structure, good performance of the whole machine, large processing capacity, simple operation, strong adaptability and so on.

Two phase centrifuge specification

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

Stable Operation The dynamic balance precision of the centrifuge is ≥ Class 2.5, which is superior to the requirement of the standard so that the centrifuge can be operated smoothly and its longevity is extended. The noise of the complete machine is < 85 dB, the vibration intensity is < 7.1 (load) and 4.5 (no-load). It is equipped with a mechanical and electrical dual overload protection device to ensure safe operation.
Long Service Life The screw conveyor and bowl adopt the most advanced, reliable and convenient wear-resistant treatment technology and structure in China. All bearings adopt original imported NSK/SKF bearings. The electric control box is made of electrical elements from famous brands such as Siemens and Schneider.
High Degree of Automation Decanter differential speed automatic control technology can automatically adjust the screw conveyor's differential speed, to prevent overload and blockage. The complete machine is equipped with a bearing temperature sensor and vibration sensor, and is provided with alarms for main motor overload, differential over torque, low differential speed, etc. Meanwhile, its supporting frequency conversion (flameproof) control cabinet can realize automatic start and stop with one key.

More parts show of the decanter centrifuge:
Productive process

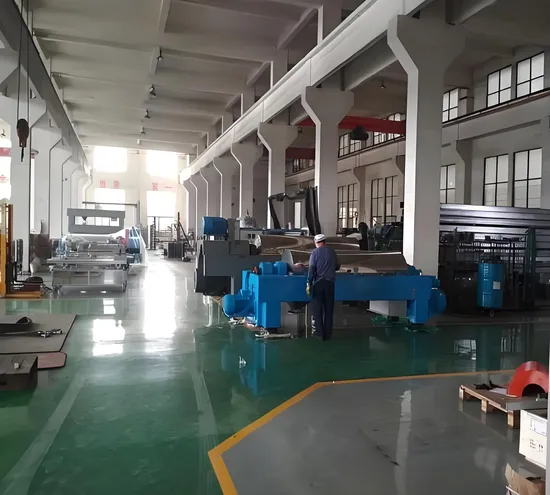

Workshop
Our services As Follows:
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.
Contact person: Risa
Hot line: +86-15941954210

---
