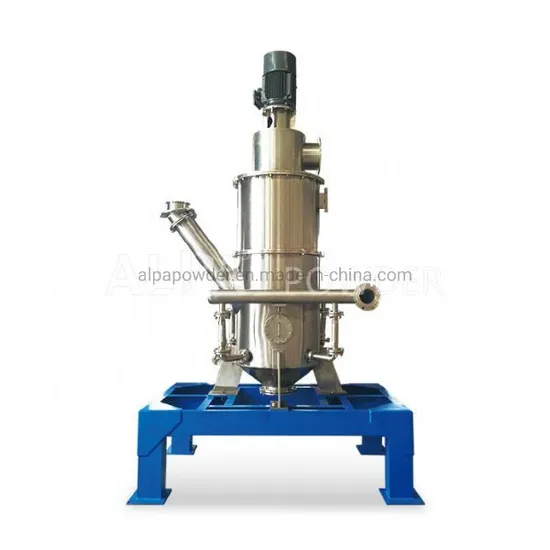

New Materials Ultrafine Grinding Jet Mill Micronizer for Sale

Product Description

New Materials Ultrafine Grinding Jet Mill Micronizer for Sale
Features and Advantages:

1.	Available particle size D50:2-45μm
2.	Vertically classifier rotor with maximum line speed of 70m/s
3.	The jet mill is suitable for dry grinding of various materials with Moh's hardness below 9, especially for the materials with high hardness, high purity and high added value
4.	Constant temperature or low temperature, medium-free grinding,especially suitable for materials of heat sensitive, low melting point, sugary, volatile nature
5.	The world's leading high-precision classifier rotor with line speeds up to 80m/s, ensuring high precision for product requirements
6.	Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring zero contact with metal throughout the pulverization process to meet the requirements of high purity materials
7.	Grinding is in closed system, low dust and noise, clean and environmentally friendly production process
8.	Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials

Working Principle:
Jet Mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.
Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan.
The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.
Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Technical Parameters:

Parameters/ specifications	MQL03	MQL06	MQL10	MQL20	MQL40	MQL60	MQL80	MQL120
Feed Size (mm)	<5	<5	<5	<5	<5	<5	<5	<5
Product Size (d97:um)	8~150	8~150	8~150	8~150	10~150	10~150	10~150	10~150
Production Capacity (kg/h)	5~100	10~200	20~400	50~800	150~1500	300~2000	400~6000	600~10000
Air consumption (m3/min)	3	6	10	20	40	60	80	120
Air Pressure (Mpa)	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85	0.7~0.85
Installed Power (kw)	26~37	46~68	68~106	145~184	276~310	402~427	520~600	720~900

Related Engineering Cases:

USA a chemical factory, lithium manganate powder, output 300KG/H, particle size D50:10μm, Jet Mill Production Line.	Kyrghyzstan a power plant, flyash powder output 10T/H, particle size D97:10μm, Jet Mill Production Line.
UAE a chemical factory, white carbon black powder precipitation process, output 1T/H, particle size D50:3.5μm, Jet Mill Production Line.	Oman a chemical factory, white carbon black powder precipitation process, output 1T/H, particle size D50:3.5μm, Jet Mill Production Line.

Shandong ALPA Powder Technology Co., Ltd. THE WORLD'S LEADING SUPPLIER OF
ULTRA-FINE POWDER SOLUTIONS ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Who Choose us:
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA. More than 3,000 customers have chosen us
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

---
