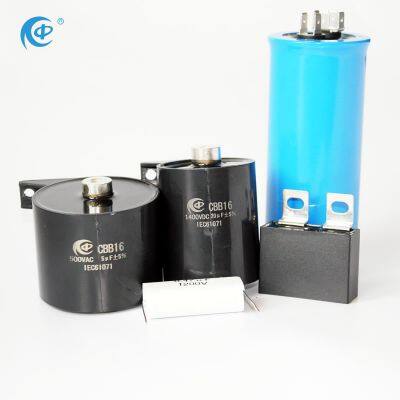

Welding Inverter Dry Film Capapcitors CBB15 CBB16

Product Details

Product Details

Product Description

Product Description
Welding Inverter Dry Film Capapcitors CBB15 CBB16
Features
High RMS Current
Low ESR
Life Expectancy 100,000Hours
Filled with resin, Dry type
Non Inductive Type, Aluminum Case
Flame Retardant ROHS Compliant
Reference Standard: IEC 601071 and IEC 60068
Applications
DC Link and DC Filter Applications in Powe Converters for Uninterruptible power supplies
Wind Power Inverters
Solar Power Inverters
High Voltage Inverters
Traction and industrial drives
Impulse discharge capacitors for magnetizing and welding
Induction Heating Equipment
Technical Data
Technical Data and Specification DC Link Capacitor
Rated Voltage
500VDC-2000VDC
Capacitance Rage
0.47uF~200uF
Capacitance Tolerance
±5%
Reference Standard
IEC 60252
Capacitance range
2-120μF
Tangent of loss angle
≤0.002 (100Hz)
Rated frequency
50Hz/60Hz
Dissipation factor
20X10-4(100Hz,20℃ )
Test voltage between terminal
2Un for 1.5seconds
Test voltage terminal to case
(2Un +1000)VAC or 2000VAC - 50Hz for 60seconds
Insulation Resistance
≥ 3000MΩ.μF (100Hz, 20℃, 60seconds )
