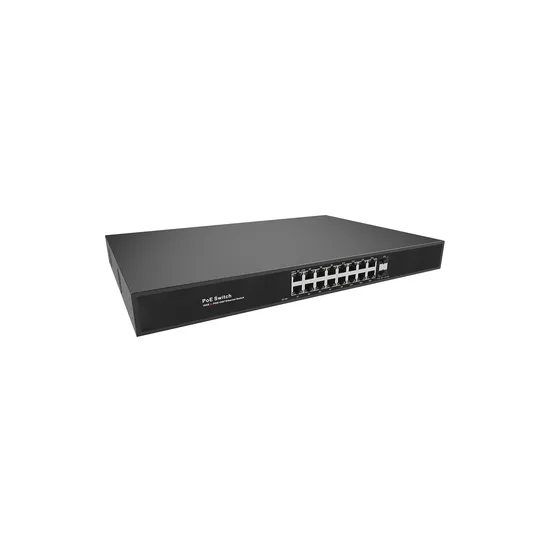

High Power 1200W Network Switch with 16 Poe Ports for Dante Audio IP Network PA System

Product Description

High Power 1200W Network Switch with 16 POE Ports for Dante Audio IP Network PA System
Features:
1. Sixteen 10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.2. Single port power supply up to 90W, total power supply up to 1200W. 3. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. 4. Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.

SPECIFICATIONS	POE16P90
Transmission Rate	10/100/1000Mbps
Max. Power Per Port	90W; IEEE802.3af/at/bt
Total Power	1200W
Fixed Port	2*1000M uplink SFP ports (Data)
	16*10/100/1000M bt PoE ports (Data /Power)
Ethernet Port	Port 1-16 support 10/100/1000Base-T(X)
	auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Switching Capacity	52Gbps (Non-blocking)
Power Supply	AC100~240V 50-60Hz
Dimension (L*W*H)	440*378*44.5mm
Net Weight	5.2kg

FAQ
1. How long is the lead time?
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What's your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What's your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What's your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.

---
