Deep Hole Gun Drilling 6 Axis CNC Machine for Mold Processing Cmd-1613-30.20

Product Description

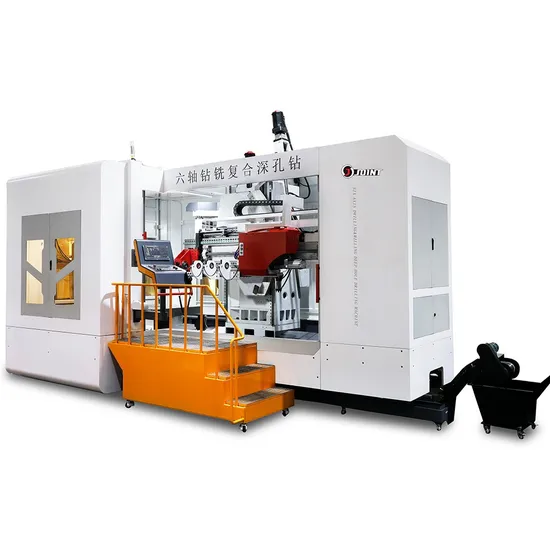

6 Axis Deep Hole Drilling Machine CNC Machine CMD-1613-30.20
Production Description
Drilling is the most basic process in machining operation, is also the process with the most wide range in application field, however,so far there has been no such an ideal equipment to change the situation that this traditional manual processing is time-consuming and energy-consuming.Bench drill, milling machine, radial dill and other traditional drilling equipment have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limits have influenced manufacturers and operators. With the arrival of the CNC,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also solves the bottleneck of depth drilling processing,. and make it possible that one-time drilling can achieve the processing quality of common drilling machine in drilling, enlarging, expanding and also realizes automatic chip removal, CNC positioning & automatic processing lts emergence is the pride of mechanical manufacturing industry moreover it is the second revolution in the field of mechanical processing!

The precision CNC deep hole drilling machine produced by the company is suitable for various kinds of work pieces for deep hole processing die & mould industry (water transport hole, center hole, hot runner, guideroller hole, etc.); auto industry (deep hole processing in cylinder head, crankshaft, hydraulic tubing,plunger bushing, etc.); oil pump &lubricating nipple industry (deep hole processing in oil-injection gas, nozzle valve, plunger bushing, and other spare parts) ; textile machinery industry( mesopore processing of various spindles); medical equipment industry (axial processing i titanium ally , stainless steel, etc.; mine &oil machinery (deep hole processing on piston rod, cylinder wall ; deep hole processing of rotor,central spindle, valve spindle, unit outer cylinder,condenser tube plate in the industry of electrical power, steam turbine.
Standard-Configuration Accessories
1. High pressure oil cylinder
2. Taiwan control system
3. lmport servo system
4. Magnetic chip removal machine
5. Precision castings
6. Taiwan spindle
7. Taiwan roller linear rail with precision
8. Taiwan screw ground with precision
Processing Principle Diagram
High Precision Deep Hole Drilling Equipment

Specification

Model	Unit	Six axis CNC Deep Hole Drilling Machine CMD-1613-30.20
Inner diameter of drilling	mm	Gun drilling processing range Φ3 ~ φ38mm, tool drilling Φ12 ~ φ50mm Optional single pipe drilling processing range: Φ30 ~ φ80mm
Size of working table	mm	1000*500
X-axis travel	mm	1600
Y-axis travel	mm	1300
Z-axis travel ( column moves back and forward)	mm	1300
W axis (machining depth)	mm	1300
B axis travel		Rotate up 20 degrees, rotate down 30 degrees
A axis travel (rotation table)		360 degree rotation
Rotary table size	mm	1200*1200
Rotary table Index accuracy		15''
Rotary table central axis runout	mm	0.015
Rotary table max. load weight	kg	22000
working table max rotation speed	r/min	2.7
Spindle speed range (stepless)	kg	50-6000
Dimension	mm	9300*6800*5000
Weight	kg	38000

Processing

Processing sample

Packing Company Information
Honorary qualification
Core technology
FAQQ1: Are you trading company or manufacturer?
A1: We are factory since 1995.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problem in this guarantee.

---
