Basic Info.
Model NO.
3V110-06 3V210-08 3V220-08
Valve Structure
Direct-Acting Piston Structure
Power Supply
DC Solenoid Valve
Usage
Flow Control, Switch
Application
Industrial Usage, Household Usage
Transport Package
Carton, Pallet, Wooden Case
Production Capacity
1000000
Product Description
Product DescriptionOrdering code

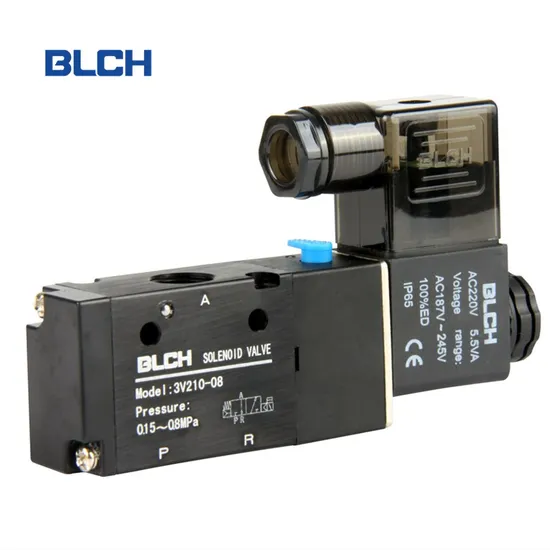

| MODEL: | 3V210-08 AC220V |
| |
| 3V | 2 | 10 | _ | 6 | AC220V |
| model | body size | valve type | | Port size | voltage |
| 3V: 3/2 way | 1: 100 body size | 10: Single coil 5/2 way | | M5: M5 | AC220V |
| solenoid valve | 2: 200 body size | 20: Double coil 5/2 way | | 06: 1/8″ | AC110V |
| | 3: 300 body size | | | 08: 1/4″ | DC24V |
| | 4: 400 body size | | | 10: 3/8″ | DC12V |
| | | | | 15: 1/2″ | AC24V |
Specification
| Model | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 | 3V410-10 | 3V410-15 |
| 2V120-M5 | 3V120-06 | 3V220-06 | 3V220-08 | 3V320-08 | 3V320-10 | 3V420-10 | 3V420-15 |
| Working Fluid | Air (to be filtered by 40um filter element) |
| Working mode | Internal pilot or external pilot |
| Port Size | M5 | 1/8″ | 1/8″ | 1/4″ | 1/4″ | 3/8″ | 3/8″ | 1/2″ |
| Port and position | 3 port 2 position |
| Working pressure Range | 0.15-0.8MPa (21-114psi) |
| Proof Pressure | 1.2 Mpa (175psi) |
| Ambient temperature | -20 ºC-70ºC |
| Material of body | Aluminum alloy |
Detailed Photos
Company Profile
Blch Pneumatic Science & Technology Co., Ltd.was established in August 2004 and specializes in the research and development, production, sales and service maintenance of pneumatic components.
As a long-term and stable manufacturer of pneumatic products, BLCH eliminates the middle link and reduces the procurement cost, thus providing customers with competitive prices.
At the same time, BLCH attaches great importance to research and development, relying on the latest technology and innovative processes to maintain its market leading position.
BLCH Factory
FAQWhat's your company policy if we want to distribute your BLCH in our market?AFirstly, thank you for your interest to promote BLCH brand. We have distributors in 15+ countries. Please no hesitate to contact ustor detailed discussions, as we have diferent policies for diferent target markets. Surely, You are welcomed to visit our factory andlet's talk face to face.
QWhat about shipping?AWe recommend small batch by the way of air/express and bulk order by sea
QDo you accept OEM business?ASure. We do many OEM production for some world famous brands and customers.
QWhat about dellvery time?ADifferent products have different estimated delivery times. Generally speaking, it takes about 2 to 5 weeks.
QHow can I make payment?AWe accept T/T bank transfer, Western Union, L/C.
QWhat is your sample policy?AWe offering a sampling service, giving you the opportunity to properly evaluate products before you buy. But you have to pay the express cost.
QHow do you ensure your product and service quality?AProvide customers with "high precision, high eficiency, high-qualty" products is our mission. All our processes strictly adhere toISO-9001 procedures. Every product will be fully assembled and carefully tested before packing and shipping. Just remember BLCH staffs are always here for you if anything needed.
QAre you manufacturer or trading company?AWe are manufacturer. We have our own factory and marketing department.
>>
