10/100m to 4 Ports RS-485/422 Serial Device Server Modbus TCP Server Modbus TCP Client Mqtt

Product Description

Accept Customization/QC Pass/ Fast Shipping

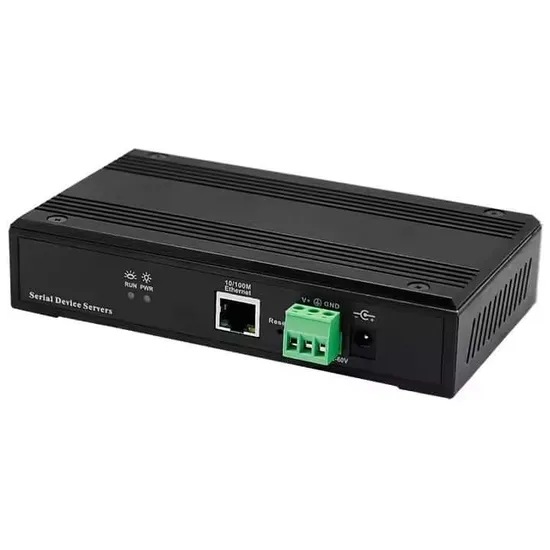

10/100M to 4 Ports RS-485/422 Serial Device Server Modbus TCP SERVER Modbus TCP CLIENT MQTTCT-6804MT-I serial device server provides a serial to network function that converts RS485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.
With metal housing and multiple installation design, suitable for industrial control site applications.
Wide power input (12~36VDC or 12~48VDC), suitable for input and output isolation method to supply power, with stronger
anti-interference ability, more reliable and safer.
Up to 4 RS485/RS422 ports, between each serial port and between the system and serial port are isolated from each other, which
makes the system work more reliable and safer. Isolation withstand voltage is 1KV.
Support a wide baud rate range of 300-921600bps, suitable for applications between different devices.
Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP CLIENT, Reverse Telnet Mode, Remote Pair mode, Modbus
TCP SERVER, Modbus TCP CLIENT, MQTT.
Support upgrade web firmware upgrade, convenient for special applications in different scenarios

CPU	32bit 400MHZ
RAM	128M
Ethernet interface	10/100M (built-in)1.5KV electromagnetic isolation auto MDI/MDI-X Ethernet interface, RJ45 interface
Serial standard	RS-485. RS-422 signal isolation output
Serial port	4×4Pin 3.81mm terminals
Indicator light	Power indicator light PWR. Running indicator light RUN
Power connector	DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection
Power ran	DC12~36V(power input and output)
Function buttons	1 factory reset button RESET
Max. Power consumption	4.2W
Housing	Metal housing, protection level IP30
Operating environment	Storage temperature: -40~85°C
Operating temperature	-40~85°C
Relative humidity	5% ~95% (Non-condensation)
Dimensions L×W×H	161mm×91mm×37mm(Without mounting parts)
Net. Weight	350g

---
