Water Treatment Magnetic Water Softener Equipment Farming Irrigation

Product Description

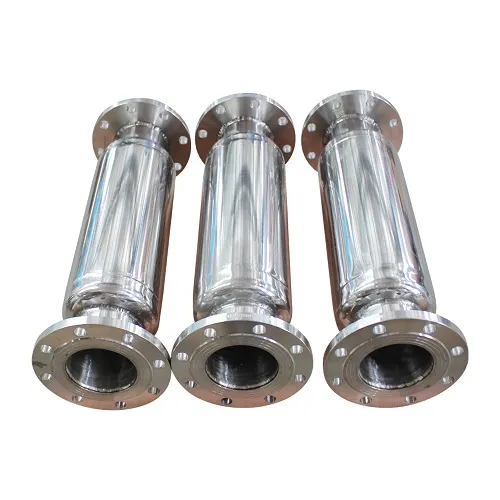

Magnetic Agricultural Water Treatment Equipment
Features and Benefits
Control scale without chemicals or salt
Convenient and simple installation
Very effective at specified flow ranges
Extends the life of fixtures, pipes, water heaters and appliances
Decreases amount of detergents and soaps used
Environmentally friendly and safe for plants and soil
No moving parts or electricity
Keep the benefits of natural calcium without negatives
Made of high grade stainless steel,
Does not remove anything from or add anything to the water
No wasted water or by-products
I. Introduction
Strong magnetic water treatment equipment treats the water with magnetic field, change the water physical structure on the premise of without changing the chemical composition of water, to achieve the purposes of anti-scaling, scale removal, sterilization, algae removal, anti-corrosion and anti-rust in water. There is strong magnetic field in central part of this products, but it generates little magnetic interference on outside, the effect of water processing is obvious, which is a new generation of novel structure and optimal product for water treatment.
II. Working principle
On use of potential energy which generates from neodymium iron boron permanent magnetic material, and optimal design, forming a crest vertical center field. When water or fluid flow through the vertical magnetic field, will produce an electromotive force, The lattice refinement, The original water fouling crystal particle size from about 3.39 microns to about 0.22 microns, flow rate will be faster, The electromotive force generated greater, The effect is more ideal, To achieve the anti-scaling, scale removal purpose.
Meanwhile, water treated by magnetic field, the electrical conductivity and osmotic pressure changed and microbial cell ruptured, cells stop breeding, which achieve effect of sterilization, and algae removal.
Since the water treated by magnetic field, it will produce tiny electron flow, which change Fe2O3 · NH2O into stable Fe3O4 and generates black magnetic iron oxide which deposited onto the tube wall surface to form a film barrier layer, the oxygen in the water separated from the pipe wall, in this case, it realize the purpose of removal and prevention of rust.
III. Scope of application
Δ A variety of water system which is easy to breed bacteria, algae and scale
Δ Air conditioning, refrigeration circulating water system.
Δ A variety of heating exchange and cooling tower system.
Δ Swimming pool system.

model	inlet and outlet		dimension(mm)	flow rate	Vertical center	Working medium	weight
	mm	inch	diameter*length	m 3 /h	strong magnetism (mt)	temperature ( . C)	Kg
YLC-1	25	1	108×330	4.9	160	0-90	10
YLC-1.5	40	1.5	108×330	12	160	0-90	20
YLC-2	50	2	159×450	19	160	0-90	30
YLC-2.5	65	2.5	159×450	28	160	0-90	40
YLC-3	80	3	159×450	50	160	0-90	45
YLC-4	100	4	219×560	80	160	0-90	50
YLC-5	125	5	219×600	125	160	0-90	60
YLC-6	150	6	273×740	180	160	0-90	70
YLC-8	200	8	325×790	320	160	0-90	90
YLC-10	250	10	377×850	480	160	0-90	110
YLC-12	300	12	426×800	600	160	0-90	130
YLC-14	350	14	478×950	750	160	0-90	160
YLC-16	400	16	530×1000	850	160	0-90	210
YLC-18	450	18	630×1050	950	160	0-90	260
YLC-20	500	20	720×1100	1100	160	0-90	330

---
