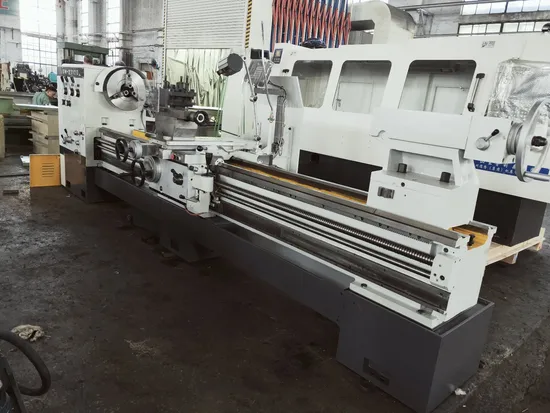

CD6180 SERIES HORIZONTAL LATHE CD6180 series is horizontal lathe used for machining various kinds of steel parts. It is especially suitable for mass production of machining inside and outside cylinder surface, end surface, metric and inch thread etc. It can also perform the function of drilling and boring hole. Main features: 1. Dynamic sliding bearing is adopted on spindle nose. The bearings have better precision and obtained state patent. 2. The spindle has 18 manual speed grade. The speed rang of spindle is 12-1000 r/min. Large spindle bore (120 mm). 3. The lathes are supplied with two systems both in metric and in inch. 4. Electric system of different frequency and voltage can be designed to meet the requirements of users.
SPECIFICATION MODELS CD6180
CAPACITY Max. swing diameter over bed 800 Max. swing diameter over cross slide 550 Max.swing on gap -- Width of bed 410mm Max. length of workpiece 4000
SPINDLE Spindle nose D11 Spindle bore diameter 120mm Taper of spindle bore 1:20 Range of spindle speed 12-1000r/min 18 18Kinds
FEEDS Longitudinal feeds range 0.082-1.59mm/r 35 35Kinds Transversal feeds range 0.027-0.522mm/r 35 35Kinds Metric threads range 1-192mm 57 57Kinds Inch threads range 2-24/ 30 31Kinds Module threads range 025-48mm 40 40Kinds Pitch threads range 1-96/ 36 36Kinds
TAILSTOCK Taper of tailstock sleeve 5 Morse No.5 Travel of tailstock sleeve 250mm Diameter of tailstock sleeve 100mm
MOTORS Main motor power 7.5kW Rapid motor power 0.25kW Coolant pump power 0.125kW
