US$250,000.00-3,000,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Automatic Grade
Automatic
Relative Moisture
Less Than 85%
Workshop Environment
No Dust, No Harmful Gas/Liquid
Product Description
Product Description
APPLICATION

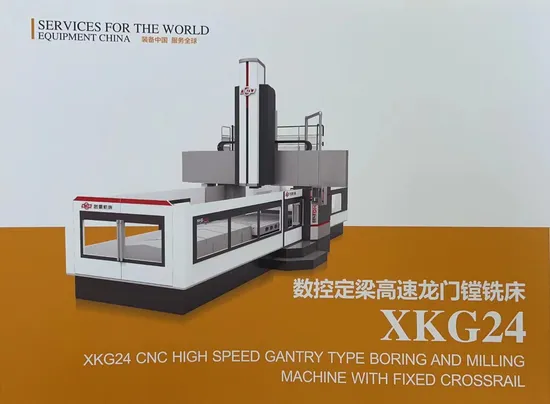

XKG24 series adopts one fixed crossrail. The machine is widely applied in industries such as aerospace, railway, transportation, molding, machining and so on. A ram type boring and milling head is mounted on crossrail. 3 feeding axis and one auxiliary axis (table X axis; boring and milling spindle-Y axis; ram-Z axis).
This machine can be equipped with various milling head. At single set-up, it can finish internal and external 5 surfaces machining (boring, milling, drilling, reaming, and tapping, etc). 3- axis simultaneous control for contour milling.
The main performance characteristics:
Bed guideway adopts linear rolling guideway pair with high accuracy, high rigidity and heavy loading capacity. Crossrail guideway and ram-slide guideway adopt fluorine plastic soft belt sliding guideway pair. Automatic clamping of tool/attachment head by spindle. Ram ado pts hydraulic balance unit; crossrail adopts load relieving mechanism. The ram is equipped with hydraulic unloading device. The machine is equipped with Siemens 828D/Fanuc 0i system. Main drive adopts AC spindle motor. All axes adopt AC servo motors with relevant speed regulator and drive device All fee ed axes are controlled by Heidenhain linear scale to realizes closed type loop control. The machine can be equipped with ATC(for optional order). Product Parameters
| Item | Unit | XKG2415 | XKG2417 | XKG2420 | XKG2425 | XKG2430 |
| Table width | mm | 1500 | 1750 | 2000 | 2500 | 3000 |
| Table length | mm | 3000-6000 | 3000-6000 | 3000-8000 | 4000-10000 | 4000-10000 |
| Loading capacity per unit length of table | t/m | 3000 | 3000 | 4000 | 5000 | 5000 |
| Distance between column | mm | 2000 | 2250 | 2700 | 3000 | 3500 |
| Max. distance from nose of spindle to table | mm | 1000 | 1000 | 1250/1500 | 1250/1500 | 1250/1500 |
| Main motor power | KW | 22 | 22 | 31 | 31/41 | 31/41 |
| Ram travel | mm | 800 | 800 | 1000/1250 | 1000/1250 | 1000/1250 |
| Spindle speed | rpm | 0-4000 | 0-4000 | 0-3000 | 0-3000 | 0-3000 |
| CNC system | | SIEMENS 840D/FUNAC 0i | SIEMENS 840D/FUNAC 0i | SIEMENS 840D/FUNAC 0i | SIEMENS 840D/FUNAC 0i | SIEMENS 840D/FUNAC 0i |
Detailed Photos
This machine tool can be widely used in the rough and fine machining of various large and medium-sized basic parts, automobile parts, aircraft structural parts and other modern large-scale molds and complex parts in the machinery manufacturing industry. It can process the plane, hole system, inclined plane, inclined hole, curved surface and the hole inside the part cavity and the plane in the narrow space of various steel and non-ferrous metal parts. The machine tool has the functions of milling, boring, drilling, reaming and tapping. After the accessory head is equipped, the workpiece can be clamped once to complete the processing of the inner and outer five surfaces, and the machine can be used for multiple purposes, thus improving the processing quality and production efficiency of the workpiece.
