Basic Info.
Application
Concrete Curb, Granite, Marble
Type for Grinding Machine
Stone Polishing Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
API, CCC, SONCAP, GOST, ISO, CE
Max.Spindle Lifting Stroke
80mm
Max. Lifting Stroke
470mm
Production Capacity for Marble
35-40 Square Meters Per Hour
Transport Package
Transportation in Containers
Specification
3200*1650*1800mm
Production Capacity
300set/Year
Product Description

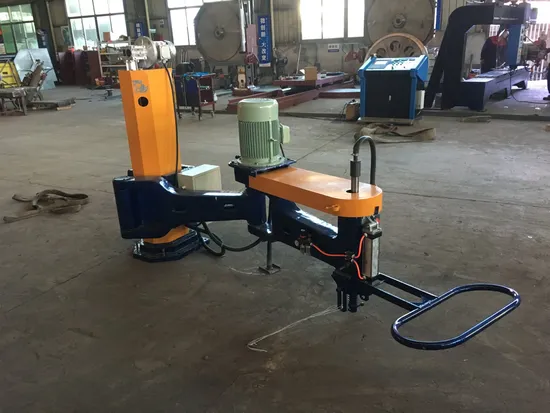

Artificial stone machinery manual type marble slabs polishing machine for sale
Widely used for surface grinding & polishing, such as tombstones, slabs, mosaic an so on
Which need to change the thickness frequently,the machine can also used for bush hammer surface polishing with bush hammer grinding head
Main features: 1. Guide surface on round column, no tiny vibration when ups and downs
2. Vertical rocker arm structure & turning joint, wide working range available
3. Automatic & Manual elevating devices for customer's choice
4. Single or Dual speed of main drive motor available
5. Worktable for grinding interior/exterior arcs available upon request
Technical parameters:
| Model | DFSF-2500 | DFSF-3000 | |
| Max.spindle lifting stroke | 80mm | 80mm |
| Max. lifting stroke | 470mm | 470mm |
| Main motor power | 5.5kw | 5.5kw |
| Total power | 6.1kw | 6.1kw |
| Dimension | 3200*1650*1800mm | 3800*1650*1800mm |
| Weight | 850kgs | 900kgs |
About Dafon Stone Machinery
We are a CE certificated manufacturing factory, professional stone machine factory that integrates design, manufacture, and trading as one. We mainly produce a multiblade stone cutting machine(especially for curbstone/kerbstone/cobblestone etc), infrared edge cutting machine, automatic line polishing machine, full automatic edge cutting machine line, multiblade stone block cutter, quarry mining machine and all sorts of stone cutting and processing machines. We also bring in new technology on manufacturing environment-friendly equipment, such as a waste water recycling system, stone dust vacuum cleaner, etc. Based on industrial cluster advantage, we offer one-stop stone cutting product solutions for free to our customers including guidance for mine planning, technical consultant, technical output, equipment and tools purchase, guidance for factory construction, etc.
Certification:
Our Exhibition:
Machine Loading:
Packaging & Shipping:
The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react.
FAQ:
Q: When can you ship my order?
A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.
Q: How long is the warranty period for machine?
A: one year !
Q: How do I install and operate the machine, after receiving it?
A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
Q: Are you manufacturer or trading company?
A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.
Q: What is your advantage?
A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Fourthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.
>>
