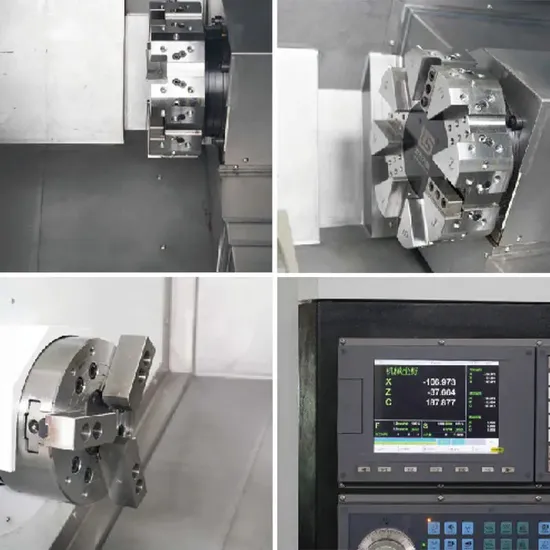

The hydraulic three-jaw chuck is an important part of this precision mechanical spindle horizontal turning center. Its design fully considers the stability and safety of workpiece clamping during processing. The three-jaw chuck adopts hydraulic drive mode, and provides stable clamping force through the hydraulic system to ensure that the workpiece will not be displaced due to vibration or external force during processing, thereby ensuring processing accuracy and safety.
The standard precision mechanical spindle with built-in high-speed unit is made of advanced technology and high-quality materials, with high-speed and high-precision processing capabilities. The built-in high-speed unit enables the spindle to easily achieve high-speed rotation, thereby meeting the needs of high-speed cutting and drilling operations. Whether it is precision contour processing or high-speed drilling operations, the spindle can provide stable and accurate processing results. At the same time, high-speed rotation can also improve cutting efficiency, shorten processing cycle, and reduce production costs.
| Item | Unit | 110 | 110D |
| Maximum Swing Diameter Over The Bed | mm | φ680 | φ680 | φ680 |
| Maximum Machining Diameter (Disc-Type) | mm | φ500 | φ500 | φ500 |
| Maximum Machining Diameter (Shaft-Type) | mm | Φ320 | Φ320 | Φ320 |
| Maximum Swing Diameter Over The Slide | mm | Φ320 | Φ320 | Φ320 |
| Distance Between Centers | mm | 630 | 630 | 630 |
| Maximum Machining Length | mm | 700 | 700 | 700 |
| Maximum Drawbar Through Hole Diameter | mm | φ75 | φ75 | φ75 |
Spindle | Spindle Nose Type | | A2-8 | A2-8 | A2-8 |
| Spindle Through Hole Diameter | mm | φ86 | φ86 | φ86 |
| Spindle Bore Taper | | MT- | MT- | MT- |
| Three-Jaw Chuck Clamping Capacity | | 10" | 10" | 10" |
| Drawbar Actuation Type | Hydraulic pressure |
| Maximum Spindle Speed | r/min | 3000 | 3000 | 3000 |
| Main Motor Power | KW | 15 / 18.5 | 15 / 18.5 | 15 / 18.5 |
| Feed | X-Axis Travel | mm | 300 | 300 | 300 |
| Z-Axis Travel | mm | 700 | 700 | 700 |
| X/Z Axis Rapid Traverse Speed | m/min | 25 | 25 | 25 |
| Accuracy | Positioning Accuracy (X/Z) | mm | 0.008/0.01 | 0.008/0.01 | 0.008/0.01 |
| Repeatability (X/Z) | mm | 0.004/0.008 | 0.004/0.008 | 0.004/0.008 |
| Tool Turret | Number of Tool Positions | | 12 / 15 ; 12 / 15 - Position | 12 / 15 ; 12 / 15 - Position | 12 / 15 ; 12 / 15 - Position |
| Drive Type | Servo |
| Center Height | mm | 125 | 100 | 210 |
| Tool Change Time (T-T) | Second | 0.2 | 0.2 | 0.2 |
| Boring Tool Holder Specifications | mm | 40 / 50 | 40 / 50 | 40 / 50 |
| Square Tool Holder Specifications | mm | 25*25 | 25*25 | 25*25 |
| Power head | Power head speed | r/min | / | 4000 | 4000 |
| Power head motor power | KW | / | 3.6 | 3.6 |
| Power head torque | N.m | / | 15 | 15 |
| Power head type | BMT | / | BMT 65 | BMT 65 |
| Y-axis | Y-axis travel | mm | / | / | 150 |
| Y-axis motor torque | N.m | / | / | 8.4 |
| Y-axis screw | ball | / | / | 3206 |
| Y-axis guide form | Rectangular hard track/wire track | / | / | Rectangular hard rail |
| Tailstock | Tailstock Sleeve Taper | | MT-5 | MT-5 | MT-5 |
| Maximum/Minimum Tailstock Centered Workpiece Length | mm | 750/200 | 750/200 | 750/200 |
| Subspindle | Subspindle power | KW | / | / | / |
| Maximum speed of auxiliary spindle | r/min | / | / | / |
| Secondary spindle nose form | | / | / | / |
| Secondary spindle through hole diameter | mm | / | / | / |
| Sub-spindle three-jaw chuck holding capacity | | / | / | / |
| Secondary spindle rated torque | N.m | / | / | / |
| Maximum torque of secondary spindle | N.m | / | / | / |
| Safety Guard | Fully Enclosed |
| CNC System (standard) | | SYTEC 22TA | SYTEC 22TA | SYTEC22TB |
| Machine Weight | Kg | About 5200/6200(Optional) | About 5200/6200(Optional) | About 5200/6200(Optional) |
| Machine Dimensions (L×W×H) | mm | 2980×2200×1950 | 2980×2200×1950 | 2980×2200×1950 |
1. English Technical files provided.
2. Machine tested before the delivery.
3. Technical support online service provided(Provide site test).
4. Consumable parts at reasonable price when replaced.
