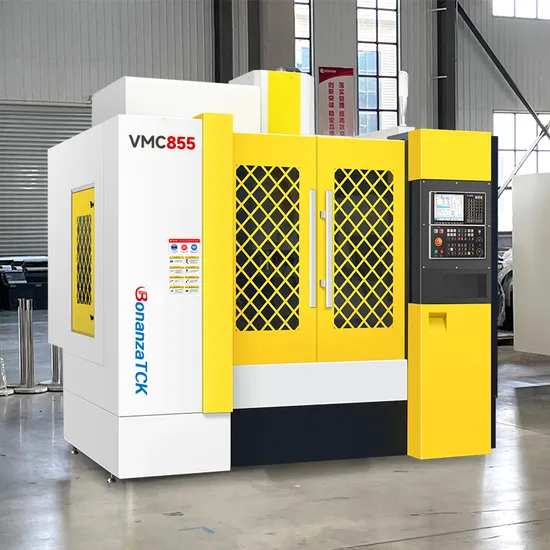

CNC Economical Tools Vmc855 3 Axis Machines CNC Milling Machine

Product Description

CNC Economical Tools Vmc855 3 Axis Machines CNC Milling Machine Product Description

1. Flowing models with ultra-high cost-effectiveness;
2. Large batch of products with a monthly sales volume of 200 units+
3. The lowest price for the same configuration on the market
4. Compact layout, more reasonable footprint, 24 disc tool libraries suitable for processing complex workpieces.
Detailed Photos

MACHINE CONSTRUCT
1. High strength high quality cast iron,
2. long span bed base and vertical column structure
PRECISION SPINDLE
1. Spindle taper is BT40,
2.Spindle speed 8000rpm, can enlarge to 10000rpm or 12000rpm
3.Spindle passed dynamic balance lSO rating test
LEAD SCREW
1. Lead screw bearing use S.KF/NACHI or NMC bearing
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μ
2. Brand: CSK Or TWIN

CONTROL SYSTEM
Standard: KND/HMC control
Optional :Siemens , FANUC, Syntec ect.

Product Parameters

Specification		Unit
worktable	Worktable size	mm	1000*550
	Worktable max.load	kg	500
	T-slot (number*width*distance)		5-18-90
Travel	X-axis travel	mm	800
	Y-axis travel	mm	550
	Z-axis travel	mm	550
	Distance from spindle nose to worktable	mm	120-670
	Distance from spindle center to column guideway	mm	590
Spindle	Spindle transmission type		belt drive
	Spindle taper		BT 40 φ150
	Spindle speed	rpm	10000
	Spindle motor	kw	7.5/11
	Oil cooler		with
	CTS (coolant through the spindlesystem)	30	BAR
Feed Speed	X/Y/Z-axis rapid feed	m/min	32/32/24
	Cutting feed speed	mm/min	1-10000
Tool magazine	Tool capacity	pcs	24
	Tools change way		Arm type ATC
	Tool change time	s	2.5
Precision	Positioning precision	mm	±0.008
	Reported positioning precision	mm	±0.005
	test standard		JISB6336-4:2000/ GB/T18400.4-2010
other	Package size	mm	2600*2380*2400
	weight	kg	5500

Company Profile

Certifications
Packaging & Shipping
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.

---
