| US$9,500.00-25,500.00 | 1 Piece (MOQ) |

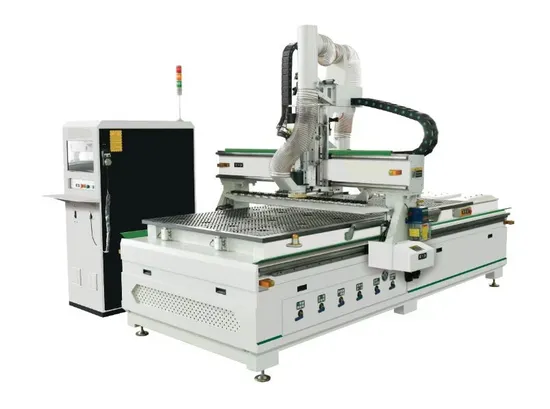

| Type | CMC-49L | ||
| Table Area | 1300*2800mm | ||
| Working Area | 1400*2900*250mm | ||
| Weight | 3.5t | ||
| Travelling Speed | 70m/min(MAX) | ||
| Cutting speed | 25m/min(MAX) | ||
| Spindle Parameters | Italy HSD 9KW ,Automatic tool change | ||
| Drill Units | Italy FAM 9V+6H+1S | ||
| Working Voltage | AC380V/3PH/50HZ | ||
| Driving System | XY:1500W actuating motor; Z:850W Brake servo motor | ||
| Reducer System | Precision transmission by Taiwan hardened reducer,Hardness 90# | ||
| Driving System | rack and pinion m1.5/Taiwan PMI rail/Taiwan PMI ball screw | ||
| Controller OS | SYNTEC 11MB or PC version | ||
| Positioning mode | High-precision automatic locating cylinder/three-point positioning (X2 +Y1) | ||
| Table Structure | Double layers of multi-point high efficient vacuum absorbable countertop | ||
| Lubrication system | Motor-driven oil pump, centralized lubrication | ||
| Electrical Accessories | Taiwan Delta VFD/ Low voltage electrical components/high quality cable | ||
| Composition | Automatic loading lift, Material feeding system, Dust absorption structure, Accurate positioning structure, Smart cutting machining centre, Unloading belt machine, High efficiency vacuum pump, PC version control cabinet | ||
| Vacuum system | 7.5KW Vacuum pump | ||
| Safety system | Overrun protection/Emergency stop protection/Limiting position / Air pressure alarm / Safety shield / interruption of power supply when the door is open/Electrical emergency etc | ||
| Accessories | 1 | Tool box(including tools) | 1 set |
| 2 | ER32 spring collet 1/2 | 8 pcs | |
| 3 | Cutting tool | 8 pcs | |
| 4 | Table vacuum plug | 120 pcs | |
| 5 | High quality φ10 sponge rubber seal | 10m | |
| 6 | Documents | 1 copy | |
