Semi Auto Kale chips Snack Food Packing MachineProduct Description

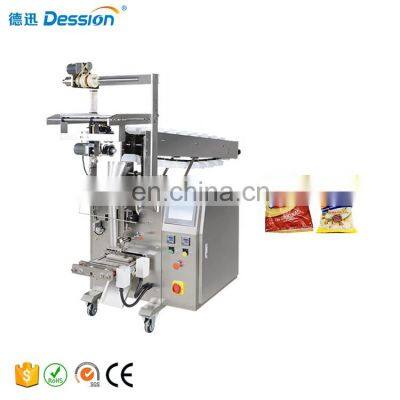

Dession DS-320E Semi Automatic Kale Chips Packaging Machine
Which is the economical way to feed most of the small snack food or daily commodity?
Following let me recommend our product DS-320E
Advantages of DS-320E Semi auto Kale Chips packing machine:
1 The part where is contact to the material is made of stainless steel. Fully stainless steel cover is available. All the machine pass the CE standard of EU.
2 Inverter and power switch are all imported with advanced technology.
3 Optional languages screen display, easy and simple operation.
4 Bag-making with precise technology enable the error less than ±o.5um.
5 High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
6 Intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong seal ability.
7 Packaging speed and length of bags can be set to some extent without parts changing.
8 Equipped with screw rod device enables the changing of packing volume anytime; Loss reducing and productivity improving.
9 Alarming function for specific output; automatic display of packaging speed.
10 Optional coding device for lot number and date printing.
11 Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
12 Flat cutting, pattern cutting, linking cutting can be realized by changing the tools; easy operation with smooth bags.
13 Bag-making device can be changed according to specific requirement of customers and products.
Product Detail Show:
Main Configuration of DS-320E bucket chain packing machine:
1.Film Setting
2.Bucket Chain
3.Bag former and cutting parts
4.Interior Electric Spare parts
How DS-320E Kale Chips packing machine working process?
Specification:
Type
| DS-320E
|
Measuring Form
| Bucket Chain
|
Sealing Form
| Back Sealing
|
Transverse Sealing
| Netted/Straight Line
|
Cutting
| Tooth Cut/Flat Cut
|
Measuring Range
| 50~500ml
|
Packaging Rate
| 30~80bags/min
|
Bag Width
| 50~150mm
|
Bag Length
| 40~200mm
|
Film Width
| 30~300mm
|
Film Roll Diameter
| 300mm
|
Bag Pulling
| Stepping Motor Bag Pulling
|
Power
| 220V,50HZ,1.2KVA
|
Machine Size
| (L)2860*(W)755*(H)1540mm
|
Machine Weight
| 300KG
|
Optional Device
| Code Applying Machine
| Air Charging System
| Drilling Equipment
|
Machine Wrapping
| Wooden Box
|
Application
It's suitable for brittle material or easy measurement of material packing such as puffed food, jelly, lemon,key chain, shoe buckle, bag buckle, metal pieces,kale chips, nuts,etc.
Samples Pictures:
More pouch styles we can offer:
1. Date printer
2. Punching hole
ing bag
4. Nitrogen filling
Our Services
1. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
3. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
4. Warranty : 1 years(Electric accessories) and free life time maintenance.
Tips: In order to save your cost, we offer various video chatting service for you, but if you insist on the service oversea, the travel expense and technician cost will be paid by you.
Buy machine for Dession,Your best choice.Following is our advantages:
That's the reason why the following customers choose us~
Packaging & Shipping
Packaging :
To ensure safety of packaging machinery,we customize wooden boxes according to the size of the packaging machinery.
Shipping:
Upon receipt of payment , delivery date will be in 20-30 working days,
By Air, by Sea or by Express (DHL,UPS,TNT,EMS etc)
Shipment cost will depend on destination, shipment way and weight of the goods.
Company Information
FOSHAN DESSION PACKAGING MACHINERY CO.,LTD. is a comprehensive modern company integrating research, manufacturing and sale. Since founded, it has been taking shape by advanced technology which we continuously devoting in research, developing and application.
FAQ
Q1: Customer: How do I find a Packing machine model suitable for my product?
1. What kind of product you have.
2. The bag/sachet/pouch size ( the length, width).
3. The weigh of your product for each bag is sometimes neccessary told(it depends what specific product you have).
4. Your requirement for the machines and the bag types.
Q2: Customer: How about the delivery time?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small packing machines.For the large-scale machine, it takes longer.
Q3: Customer: Can you offer some video or pictures of the packing machine?
Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for you reference.
Q4: Customer: How about the after-sales service? ( Buy machine here? Don't Worry! )
1. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
3. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
4. Warranty : 2 years(Electric accessories) and free life time maintenance.
(Notice: In order to save your cost, we offer various video chatting service for you, but if you insist on the service oversea, the travel expense and technician cost will paid by you.)
Dession Machinery is your best choice,further information pls contact
