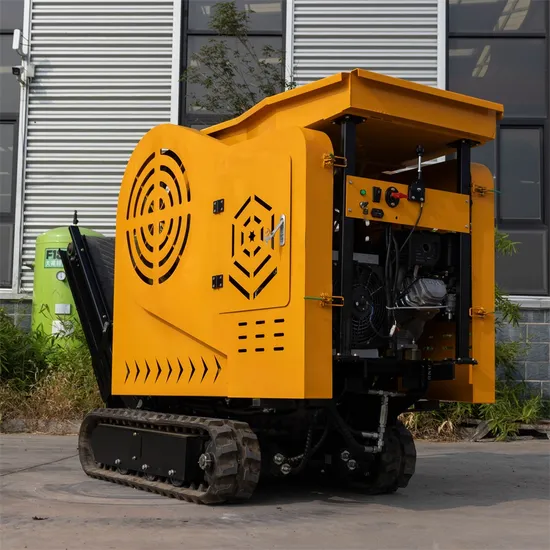

Mobile Crawler Jaw Concrete Crusher Mini Stone Crusher Machinery

US$6,350.00
1-9 Pieces
US$5,950.00
10+ Pieces

Basic Info.

Model NO.
HT430
Drive
Hydraulic
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
>300MPA
Crushing Degree
Intermediate Crusher
Finished Surface
Thread Process
Certification
CE, ISO
Condition
New
Color
Yellow
Name
Crawler Jaw Crusher
Engine
Rato/Briggs&Stratton Engine/Koop
Power
13.5HP
Feed Port
200X 370mm
Maximum Feed Size
200mm
Crawler Chassis Size
1220X770mm
Traveling Speed
0-3 Km/H
Track Model
180X 72X 37mm
Silo Volume
0.5cbm
Stacking Height
900-1200mm
Feeding Conveyor
1450X400mm
Jaw Plate Adjustment Range
25mm
Working Size
2950X770X1630mm
Transport Size
2100X 770X1760mm
Inner Width of Vertical Board
410mm
Transport Package
Wooden Box
Specification
4cmb
Trademark
logo
Origin
China
HS Code
8429521200
Production Capacity
10000sets/Year

Packaging & Delivery

Package Size
225.00cm * 107.00cm * 189.00cm
Package Gross Weight
2000.000kg

Product Description

Mobile Concrete Crusher Small Portable Jaw Crusher Stone Crushing Machine Concrete
Technical Parameter
HT430 Mini Crawler Mobile Jaw Crusher
Overall dimension(mm): 3200×1000×1600
The vertical board inside width(mm) 380
Transport size(mm): 2150×1000×1750
Total outside width of the protective cover(mm): 960
Track size(mm): 180×72×41
Thrust wheel diameter(mm): 126
Thrust wheel quantity(group): 6
Feeding oening size(mm): 220×350
Max. Feeding openingsize(mm): 200
Hopper capacity(m3): 0.25
Stacking height(mm): 700-1150
Feeding conveyor(mm): 1500×500
Gravel range(mm): diameter15-50
Walking speed(km/h): 0-3
Track material: Rubber
Production capacity(T/h ): 2T-10T/h
Belt width(mm): 400
Operation
Engine: Rato
Operation type: Manual hydraulic valve
Walking type: Crawler
Walking motor model: 6K-395
Continuous torque(N.m): 850
Hydraulic pump model: PGP5108
Conveyor motor model: BMER-300
Conveyor lifting method: Manual operation and hydraulic lifting
Jaw crusher lubrication method: Grease



Mobile Concrete Crusher Small Portable Jaw Crusher Stone Crushing Machine Concret
