Basic Info.
Function
Put Pressure on The Plywood
Low Pressure Pump Motor Power
22 Kw, 2 Pieces
Total Motor Power
64.7 Kw
Transport Package
Plastic Film / Plywood
Specification
4220*2020*11300 mm
Production Capacity
3 Sets / Month
Packaging & Delivery
Package Size
422.00cm * 202.00cm * 1130.00cm
Package Gross Weight
14500.000kg
Product Description
Detailed Photos
Product Parameters
PRODUCT PARAMETER

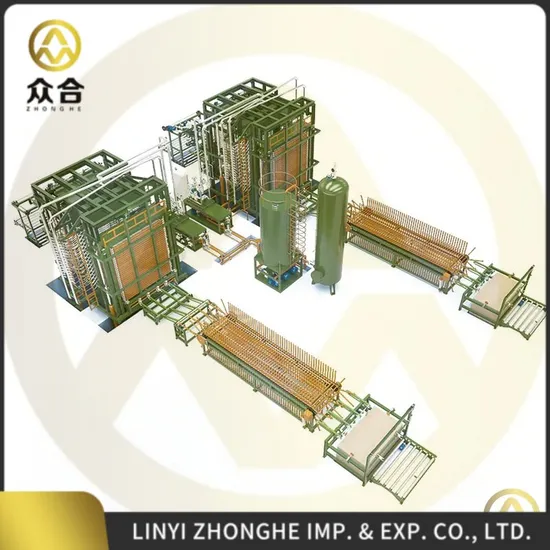

| FULL AUTOMATIC 36 PLATES 800 TONS HOT PRESS PRODUCTION LINE |
| PART 01: FULL AUTOMATIC LOADING SYSTEM TECHNICAL SPECIFICATIONS |
| 1 | Standard unit size | 1220*2440 mm, 1 complete unit |
| 2 | Opening size | 80 mm |
| 3 | Opening number | 35 |
| 4 | Lifting pistons | diameter 140 mm, stroke 4450 mm, 2 pieces |
| 5 | Working stroke | 4450 mm |
| 6 | Lifting speed | 18 meters per minute |
| 7 | Main frame size | 4220*2020*11300 mm |
| 8 | In feeding motor power | two hydraulic motors |
| 9 | In feeding roller conveyor | 1 unit |
| 10 | In feeding roller conveyor motor | 0.75 KW |
| 11 | In feeding Lift table and automatic sucker | 1 unit |
| 12 | Weight | 14.5 tons |
| PART 02 : 36 PRESS PLATES 800 TONS HOT PRESS MAIN TECHNICAL PARAMETERS |
| 1 | Norminal pressure | 800 Tons (8000 KN ) |
| 2 | Hot press plate size | 2700*1370*42 mm, material Manganese steel Q355 |
| 3 | Hot press plate steam input style | double inlet, double outlet |
| 4 | Unit part size | 1220*2440 mm, 1 unit |
| 5 | Opening size | 80 mm |
| 6 | Opening number | 35 |
| 7 | Big pistons | diameter 320 mm, stroke 2950 mm, 4 pieces |
| 8 | Small pistons | diameter 180 mm, stroke 2950 mm, 2 pieces |
| 9 | Working stroke | 2800 mm |
| 10 | Unit working pressure | 21 kg/cm² |
| 11 | No-load closingtime | 300 mm/s |
| 12 | Machine size | 3580*1370*7400 mm |
| 13 | Hydraulic oil tank size | 2550*1250*1800 mm |
| 14 | Hydraulic oil tank volume | 3 cubic meters |
| 15 | Hydraulic oil tank weight | 2000 kg |
| 16 | Low pressure pump motor power | 22 KW, 2 pieces |
| 17 | High pressure pump motor power | 11 KW, 1 piece |
| 18 | Plywood In put and out put oil pump motor | 7.5 KW, 1 piece |
| 19 | Lifting motor power | 2.2 KW, 1 piece |
| 20 | Total motor power | 64.7 KW |
| 21 | Workshop height | 7500 mm |
| 22 | Foundation depth | 5050 mm |
| 23 | Total weight | 73 Tons |
| PART 03: FULL AUTOMATIC UNLOADING SYSTEM TECHNICIAN SPECIFICATIONS |
| 1 | Standard part size | 1220*2440 mm, 1 complete set |
| 2 | Opening size | 80 mm |
| 3 | Opening number | 30 |
| 4 | Lifting pistons | diameter 140 mm, stroke 4950 mm, 2 pieces |
| 5 | Working stroke | 4950 mm |
| 6 | Lifting speed | 18 meters per minute |
| 7 | Machine size | 4200*2020*11300 mm |
| 8 | Output driving power | hydraulic motor |
| 9 | Output lift table | 1 unit |
| 10 | Automatic plywood STACKER | 1 unit |
| 11 | Out put roller conveyor motor power | 0.75 KW |
| 12 | Weight | 14.5 tons |
| PART 04: Frame type Automatic Stacker Specifications |
| 1 | plywood size | 1220*2440 mm |
| 2 | stacking height | 1200 mm |
| 3 | Stacking power | gear reducer |
| 4 | Motor power | 0.75 KW |
| 5 | Stacking speed | 2 seconds per sheet |
| 6 | Machine size | 3050*3200*2080 mm |
| 7 | Out put lift table | 1 unit |
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine, plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3- Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications
FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.
>>
