Continuous Foam Crushing Machine with Feeding Conveyor for Safety and Capacity

US$2,000.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1000/1200/1500
Material Processed
Foam
Plastic Type
Foam
Screw
Double-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Shafts Qty
2 PCS
Hopper Width
1000/1200/1500 mm
Reducer
Hard Teeth Surface
Motor
Copper Motor Quality
Transport Package
Plywood Box
Specification
1000/1200/1500 hopper
Trademark
Myaid
Origin
China
HS Code
8477800000
Production Capacity
100 Sets Per Month

Product Description

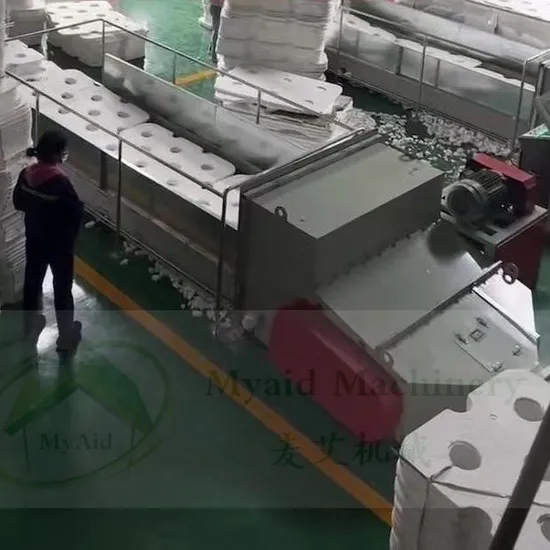

The foam crushing machine works with a long conveying belt to convey the materials into hopper to crush them.The crushed materials will be blowed into big silo for further process.
There are two horizontal shafts installed inside hopper by left and right layout.
The conveyor is belt type and it is 4000mm length at default.
Machine Advantage
The foam crusher machine can crush various foam materials like EPS/XPS/EPO/PU/EPE etc.It works with two crushing shafts and it can work effectively to recyle.
The foam crushing machine can work with big capacity to crush foam materials.
The conveyor also gives users enough safety away from shredder.
Hard teeth reducer + Copper Motor
Machine Parameter

Model Inlet Size Motor Power Shaft Qty BlowerPower Capacity
1000 1000*800 7.5kw 2 3kw 500kg/h
1200 1200*800 11 kw 2 3kw 750kg/h
1500 1500*800 15 kw 2 3kw 1000kg/h

Machine Application
FAQ
Q: why users need conveyor ?
A: for safety and capacity and easy feeding. Too many benefits are there.
Q: How many shafts inside hopper ?
A: Two shafts.
