Product Details
Product Description
Product Description

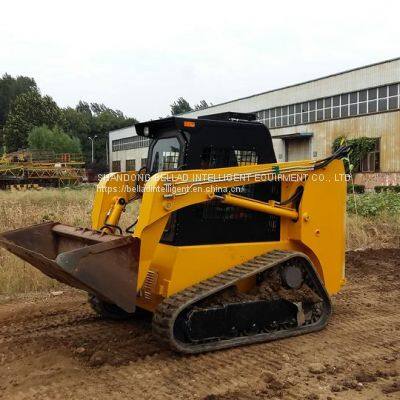

Skid Steer Loader
Skid steer loader JC100 with 100hp Weichai engine,Loading capacity is 1200kg
Item
| description
| Item
| description
|
Rated operating capacity(kg)
| 1200
| Hinge pin height (mm)
| 3150
|
Tipping load (kg)
| 2400
| Total height (mm)
| 2160
|
Bucket capacity(m3)
| 0.5
| Length with bucket (mm)
| 3700
|
Hydraulic pump flow (L/min)
| 88/140
| Length without bucket(mm)
| 3000
|
Engine power (hp)
| 100
| Width with bucket (mm)
| 2030
|
Weight(kg)
| 3800
| Track width (mm)
| 1500
|
Max travel speed (km/h)
| 12/18
| Wheelbase (mm)
| 1020
|
Grade ability
| 20
| Ground clearance (mm)
| 205
|
Tire
| 12-16.5
| Dumping angle
| 40
|
Fuel/hyd oil capacity (L)
| 90/90
| Dumping height (mm)
| 2450
|
Height at maximum extension
| 4070
| Maximum reach (mm)
| 700
|
Standard feature:
1.Chinese weichai brand diesel engine 74kw
2.German rexroth brand hydraulic pump
3.German rexroth brand hydraulic motor
4.Close cabin
5.Hydraulic joystick control system
6.Double speed
7.High flow output
8.Standard bucket
Option:
1.Imported Diesel Engine ,Cummins or kubota brand
2.Air condtion
Our JC100 can use many different attachments for different purpose,for example,pallet fork,4 in 1 bucket,dozer blade,snow blade,grapple bucket,fork grapple,backhoe,sweeper,angle broom,breaker,trencher,auger,vibratory roller,mixer,snow blower,grass cutter,rock buket,bale hanlder,Utility fork,scaper,roto tiller,tree shear,tree spade,forest mulcher etc,pls have a look for their photos in attached photo
>>
