Basic Info.
Model NO.

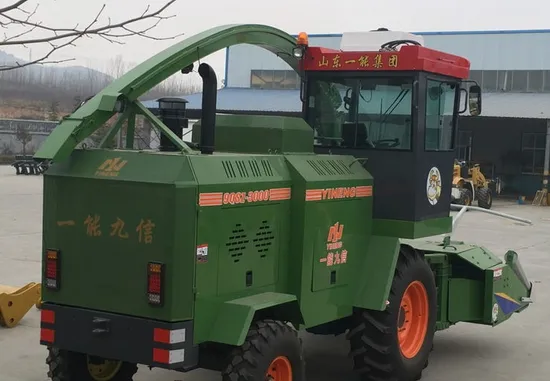

9QSZ3000 silage harvester Shan dong
Portable Harvester Type
Combine
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture
Cutting Length
7-50mm(Adjustable)
Engine Power
140kw(190HP)
Dimension
7100*2850*4730mm
Origin
Taian City, Shandong Province, China
Production Capacity
200 PCS/ Month
Product Description
Features:
* Using the Germany champion's disc technique vertical cutting platform, working width 2.4meters
* The engine by Yuchai engine, output power of 190 horsepower, reliable quality, fuel consumption is small;
* Free switching between 4WD walking and 2WD walking modes, improve the machine environment adaptability.
* Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;
* Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle;
* Large capacity dump hopper, easy for the car-following operation;
* Adjust the cutting length of the materials in multi-polar.The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
Main Technical Parameter:
| Items | Parameters |
| Operation way | Auto-run unlevel harvest |
| Cutting table type | vertical cylinder |
| Operation Range | 2400mm |
| Operation speed | 4-8km/h |
| Efficiency | 20-60T/h |
| Cutting Length | 7-50mm(adjustable) |
| Loss rate | ≤3% |
| Min cutting height | ≤150 |
| Engine Power | 140kw(190hp) |
| Dimension | 7100*2850*4730mm |
| Overall weight | 6900kg |
Remark: Heavy chassis for standard
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
>>
