Waste Plastic Bottle Recycling Machine PP PE HDPE Flakes Washing Recycling Line Waste PP/PE Plastic Film Washing Line

US$13,600.00-35,280.00 1 Piece (MOQ)

Basic Info.

Model NO.
WRM
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Name
Waste Plastic Bottle Recycling Machine PP PE HDPE
Inverter
ABB Brand
Motor
Siemens Beide
Raw Material
Pet PP PE
Contactor
Siemens Contactor
Warranty
1 Year
Color
Customised
Temperature Controller
Rkc
Weight
10-20t
Voltage
380V 50Hz 3phase(Customized)
Transport Package
Standard Shpping Package
Specification
25mx2.5mx2.2m
Trademark
CAMEL
Origin
China(Mainland)
HS Code
84772090
Production Capacity
800 PCS/Year

Product Description

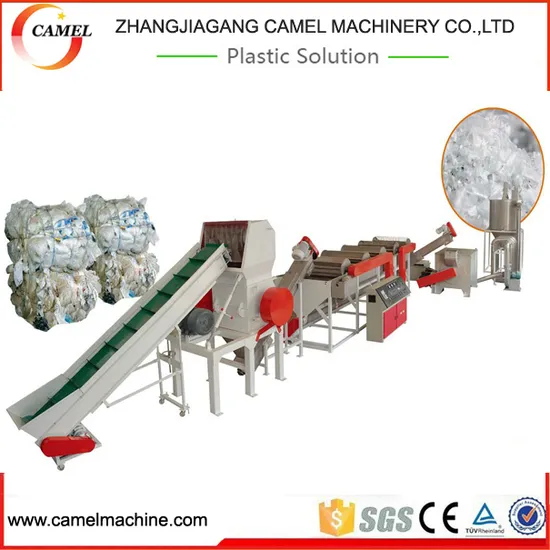

Plastic bottle & film & bag recycling and washing line :
Belt conveyor*2→Crusher (with water) *2→ Double screw conveyor*2→Film floating washer→ Screw conveyor→ High speed friction machine→ Screw conveyor→ Horizontal dewatering machine→ Drying system→ Transition silo→ Drying system→ Storage hopper→ Control cabinet

Advantages:
1. Final products has good quality. When process PP PE film bags, Water content<=8%
2. The whole line capacity between 200kg/h-2000kg/h (200kg/h, 300kg/h, 500kg/h, 1000kg/h)
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, RKC temperature, ABB inverter, Siemens PLC control etc
5. The whole production line with CE certification, ISO9001 certification

Technical parameter:
Plastic PP PE film/bag recycling washing line main components(1000kg):
Name Quantity Power
Belt conveyor 2sets 2.2kw*2
Crusher 2sets 55kw*2
Screw conveyor 2sets 3kw*2
Floating washer 1set 3kw+3kw+3kw
Screw conveyor 1set 5.5kw
High speed frication machine 1set 45kw
Screw conveyor 1set 5.5kw
Horizontal dewatering machine 1set 110kw +1.5kw
Drying system-1 1set 48kw+11kw
Transition storage hopper 1set /
Drying system-2 1set 36kw+11kw
Storage hopper 1set 1.5kw+1.5kw
Control cabinet 1set /
