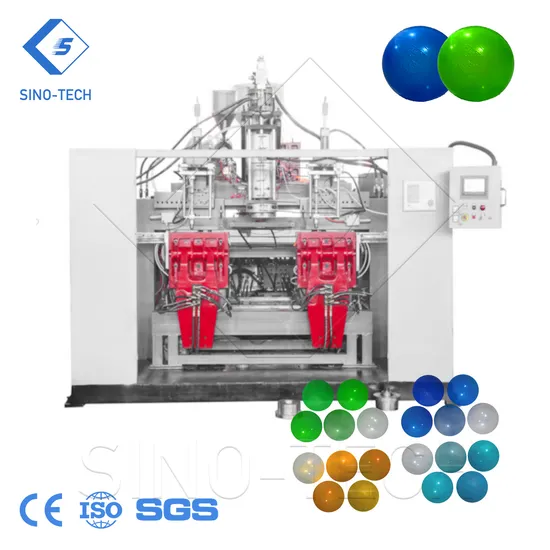

High Quality PE HDPE LDPE PP Transparent Plastic Sea Ball Making Machine with CE

Product Description

Product Description
High Quality PE HDPE LDPE PP Transparent Plastic Sea Ball Making Machine with CE
STBII-2L&5L series blow molding moulding Machine is Suitable for making 2L 5L PP PE HDPE LDPE PVC,PETG...plastic ballsl.
This is double station and this is electric-hydraulic.It is high speed and energy-saving.The blow pin,die-head up & down, platform up & down is controlled by electric.The main movement is controlled by hydraulic servo system.Clamping unit is elbow style and the clamping force is big.This machine is suitable for the 2L 5L Plastic balls.If you have other special requirements,we can provide customized services for you.
Customize the products according to your requirement
Product Description
STBII-2L&STBII-5L Continous Extrusion Blow Molding Machine
Machine Features 1. Special design for 50ml to 5L PE/PP Sea balls,plastic bottle, jars, small containers, jerrycans from 50ml to 5L 2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose 10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head or multi diehead for choice and double station .
Product Parameters

Technical Specification		STBII-2L/STBII-5L Continous
		Extrusion Blow Molding Machine
Specifications		STBII-2L	STBII-5L
Max. Product Volume	L	2	5
Station		Double	Double
Dry cycle	pc/h	900*2	700*2
Screw Diameter	mm	60	80
Screw L/D ratio	L/D	25	25
Screw Drive Power	KW	15	30
Screw Heating Power	KW	9.7	17.6
No.of heating zone	Zone	3	4
Output of HDPE	kg/h	60	110
Hydraulic pump driving power	KW	5.5	11
Clamping force	KN	40	110
Platen distance	mm	138~368	148~508
Mold moving stroke	mm	370	450
Max. Size of Mold(W*H)	(W*H)mm	300*320	440*420
Capacity of accumulator head	head(L)
Max.Die diameter (single-head)	mm	108	145
Die heating power (single-head)	(single-head)KW	5.2	7.6
No.of heating zone (single-head)	(single-head)Zone	3	3
Central Distance of Bi-head	mm	130	160,180
Max.Die diameter (Bi-head)	(Bi-head)mm	72	108
No. of heating zone (Bi-head)	(Bi-head)Zone	5	5
Heating power (Bi-head)	KW	7	10.7
Blowing pressure	Mpa	0.6	0.6
Air consumption	M3/MIN	0.4	0.4
Cooling water pressure	MPA	0.2~0.3	0.2~0.3
Water consumption	L/MIN	35	60
Size of machine	(L*W*H)m	3.2*2.12*2.55	4.1*2.6*2.7
Weight of machine	Ton	6	8

Detailed Photos

Company Profile
Packaging & Shipping
Customer Feedback
FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
