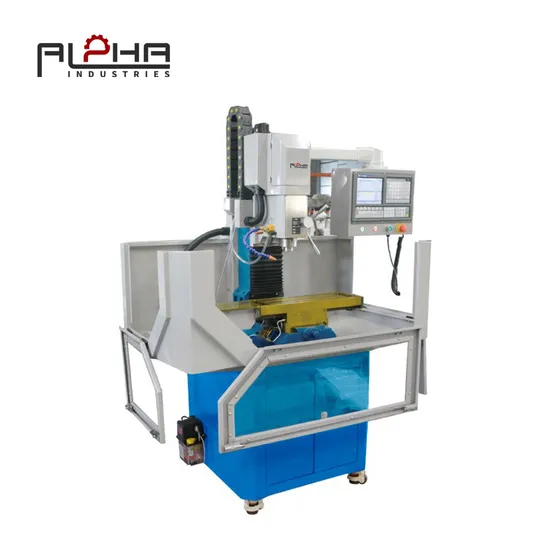

Manufacturers Sell at Low Prices Metal Lathe Xk7118 CNC Milling Machine

Product Description

Product Parameters

Technical Parameters
Model No.		Unit	XK7118
table size(length×width)		mm	540×180
tablebearing capacity		kg	100
t-slot specifications(width×number of slots ×spacing)		mm	12×3×63
spindle hole			MT3#/R8/BT30(optional)
distance from spindle end face to worktable		mm	50-340
distance between spindle center and column guide rail surface		mm	210
spindle speed	MT3#spindle	r/min	0-3000(Manual tension knife)
	R8 spindle	r/min	0-5000(Manual tension knife)
	BT30 spindle	r/min	0-5000(Manual tension knife)
X/Y/Z Stroke		mm	320×200×290
X/Y/Z rapid Speed		mm/min	8000
X/Y/Z Axial powerfeed speed		mm/min	6000
MT3#spindle		kw	1.88KW/6N.m--Servo motor
spindle motor R8 spindle		kw	1.0KW/3.18N.m--Servo motor
pOwer BT30 spindle		kw	1.0KW /3.18N.m--Servomotor
operating system			SIEMENS 808DA (Systems can be selected according to requirements)
X/Y motor pOwer		kw	0.4kw/1.9N.m (SIEMENS Servo motor) 0.75kw/2.4N.m(Universal servo motor)
Z axis motor power		kw	0.75kw/3.0N.m(SIEMENS 0.75kw/3.2N.m(Universal	Servo servo	motor) motor)
minimum set unit		mm	0.001
accuracy of positioning		mm	0.025
repeated positioning accuracy		mm	0.015
lead screw precision class			P4 Stage grinding ball screw
input power supply			AC220V/AC380V±10%50Hz/60HZ
total electrical capacity		KVA	5
overall dimensions (length ×width×height)		mm	1350×930×1840
package size (length×width ×height)		mm	1550×1050×1950
machinetool weight		kg	500

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
