ZTCL 6m 8m 9m 10m 11m 12m 14m 16m 18m 500kg Capacity Aerial Work Platform Electric Mobile Scissor Hydraulic Lift Tables Man Lift Mobile Lift Platform

Product Description

Product Description

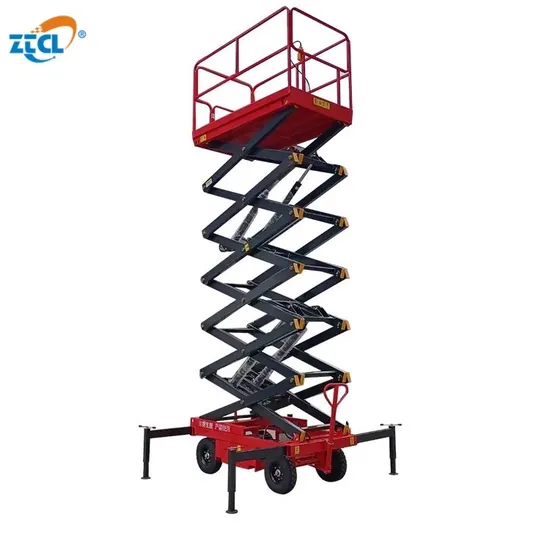

ZTCL Mobile scissor lifting platform is a piece of special equipment for aerial work with wide applications. Its scissor-type mechanical structure makes the lifting platform has higher stability. A wide space platform and higher load capacity make the work range more larger and suitable for many people to work at the same time. It makes aerial working more efficient and safer. Mainly used for the station, dock, bridge, hall, workshop indoor and outdoor machinery installation, equipment repair, building maintenance.
Product Parameters

Model	Lifting height (m)	Platform size (mm)	Load capacity (kg)	Overall dimensions (mm)	Weight (kg)
ZTSJY0.5-4	4	2100* 830	500	2250*950* 1200	800
ZTSJY0.5-6	6	2100* 830	500	2250*950* 1200	880
ZTSJY0.5-7	7	2100* 830	500	2250* 950*1280	970
ZTSJY0.5-8	8	2100* 930	500	2250* 1060*1380	1050
ZTSJY0.5-9	9	2100* 930	500	2250*1060* 1500	1165
ZTSJY0.5-10	10	2100*1230	500	2250*1350*1530	1360
ZTSJY0.5-11	11	2100*1230	300	2250*1350*1650	1400
ZTSJY0.5-12	12	2550*1530	500	2796*1670*1750	2260
ZTSJY0.5-14	14	2812*1530	500	3067*1730*1810	2486
ZTSJY0.3-16	16	2812*1600	300	3067*1810*2080	3063

Detailed Photos
Our Advantages
1. Mobile scissor lift is easily operated by control panels both on the platform and at the bottom. 24V safe operating voltage.
2. Besides AC power, power options available on the lift include diesel engine, battery, and any combination of these. (optional)
3. Detachable guardrail: Convenient for storage and entering the gate.
4. The lift has a trailing bar to control the direction of movement by manual or trailed by truck.
5. Electric walking assistant device: With help can move the lift easily by one person. (optional)

Product show

Packaging & Shipping

FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.

---
