500/1000/2000kg/H Toilet Facial Soap Production Machinery Laundry Soap Making Machinery

Product Description

500/1000/2000KG/H Toilet Facial Soap Production Machinery Laundry Soap Making Machinery Main Photos
Layout of Soap Making Machinery
Production flow photos of Soap Making Machinery
Product Description
Introduction of Soap Making Machinery
1. This soap production line take soap noodles(soap bar) as raw materials.2. The production starts with mixing soap noodles/stripes,perfume pigment,essence and,etc.2. Then the mixed soap noodles enters in the three roller mill by conveyor belt, where soap thin sheets are made. 3. The soap thin sheet then converted into desired long strip soap by the vacuum twin screws plodder machine.4. Then the long strip soap are cut into the soap bars required size and shape by cutting machine or toilet soap stamper machine5. Finally, the soap bars gets packed by packing machine if needed.6. Soap bars can be made 15g,20g,30g,60g,120g,200g,260g,and so on
Different capacity of Soap Production Factory
Toilet soap production line: 100/200/300/500/800/1000kg/h
Laundry soap production line:100/200/300/500/800/1000/1500/2000kg/h
Features of Soap Production Factory :1. The finishing lines of Series for Laundry or toilet and translucent soap bring together all components that are most reliable, most durable, supplied by the most famous vendors in the world. 2. The mechanical design is tend to be simplified, more robust, low energy consumption, low off-stream rate, easy to be maintained ,more people oriented and with good view both outside and inside of the machines.
Machine parameter of Soap Making Machinery

Main machines	Model	Capacity	Specification	Function
Soap Mixer	YM-60/70/80	70/90/120kg/batch	Depends on the model/capacity	Mixing the material and neat soap, also crushing the bad soap bars.
3 roller miller	YM-S150/S260/S405	300/500-1000/2000kg/h	Depends on the model/capacity	rubbing soap material
Semi-finished product conveyor			Depends on the model/capacity	convey soap pieces
Double-screws vacuum soap plodde	YM-C180/219/245/325	100-300/300-500/500-1000/1000-2000kg/h	Depends on the model/capacity	vacuum ploddering
Vacuum pump	YM-VP001/VP002	8/15L/S	Depends on the model/capacity	vacuum bubble pumping
Laundry soap bar cutting machine	YM-SC004	100-3000KG/H, Depends on the soap plodder	Depends on the model/capacity	cut the soap into different sizes and weight, and print words and logo on the soap bar
Toilet soap stamper machine	YM-SPM001/SPM002	100-500/500-800kg/h	Depends on the model/capacity	print different shapes toilet soap with different logo
Products conveyor			Depends on the model/capacity	Convey products
Soap chiller	YM-SC001/SC002		Depends on the model/capacity	auxiliary equipment of the soap printer
Soap packaging machine	YM-CT250/CT320		Depends on the model/capacity	packing toilet and laudnry soap bars

Detailed Photos
Detailed images of Soap Making Machinery
MIXER
Trip grinder

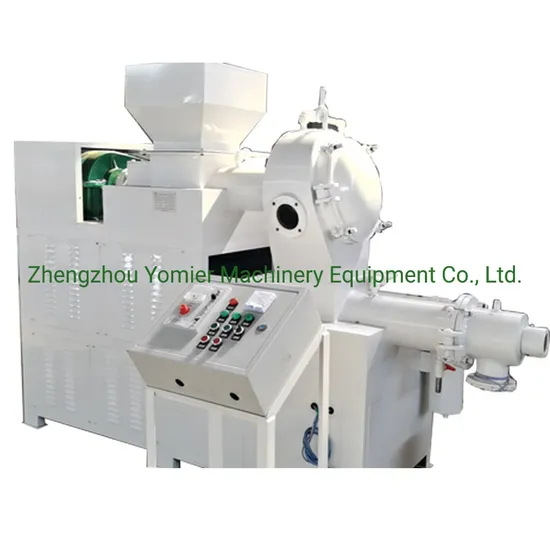

SOAP PLODDER
LAUNDRY SOAP CUTTER
TOILET SOAP STAMPER
Clients' feedback
Clients's Soap Making Machinery For you reference):
Customized made Soap Making Machinery for reference:
Clients visit Us:
Packaging & Shipping
Packing and shipping of Soap Making Machinery :
FAQ
FAQ OF price of Soap Making Machinery
1, Q: Soap industry production process?
A, Basically, the soap production need 2steps:
a, using all kinds of oil&fast as material to produce semi-finished soap noodle;
b, using seme-product soap noodle to produce end bar soap.
2, Q:What is the kinds of the soaps?
A: For convenience, we separate the soap into two kinds, toilet soap for washing hand&taking bath, herbal soap, hotel soap, antiseptic soap are included;
The second kind is laundry soap for washing clothes, etc.
3,Q: What kind of oil is suitable for soap production?
A: All kinds of vegetable oil and animal fats are usable, palm oil, cotton seed oil, tallow oil, coconut oil, sunflower oil, etc.
4,Q: What is the floor of the workshop size?
A: For oil line: 35*7m with height 7m;
For soap noodle line: 25*3m with height 4m.
5,Q: What is the formula?
A: Raw material is oil, caustic soda and salt; semi-product is soap noodle, perfume and color.
Accurate formula based on your local market's request is available after confirmation of order.
6,Q: How about the Engineer and technique support?
A:
1, We would send engineer overseas for machine installation, staff training and production test running, till your own staff can operate the machine well and product out qualified soaps.
2, During the life-span of our machines, we should give consistent technique support and service, and we are pleasure to be on service of you.(24hours on line)
7,Q: If there are spare parts broken,how to solve it?
A: First of all, pls take the pic or make a video to shoe the problem parts,after the problem is confirmed by our engineers, we will send you the spare part for free,,but customers should bare the delivery cost.

---
