LDPE LLDPE HDPE Agriculture Packaging Plastic Soft Film PP Woven Jumbo Bag Scrap Crushing Washing Recycling Squeezing Machine Line Plant

Product Description

LDPE LLDPE Agriculture Packaging Film PP Woven Jumbo Bag Washing Recycling Squeezing Plant
Product Description
Film Crusher
Crushing with water
Rotation speed:600RPM
Ladder shape rotor design
SKD-11 Knife material
Function:
to cut the film into small flakes,crushing with water is more efficiency
Screw conveyor
Made of stainless steel 304
Thickness of blades:5mm
Function:
to send material to next and rub material

Floating tank
Made of stainless steel 304
Dimensions: 4500mm-8000mm
Thickness of wall: 3mm
Speed control by inverter
Function:
to deep wash material by rollers, dirt fall down and discharge by bottom screw
High speed friction washer
Rotation speed:1200RPM
Mesh diameter:3mm
Made of stainless steel 304
Bearing:NSK
Function:
to remove impurities by centrifugal force
Centrifugal dryer
Rotation speed:1500RPM
With inside mesh self-cleaning system
Made of stainless steel 304
Bearing: NSK
Function:
to remove water by strong centrifuge force
Film Squeezer
Screw diameter:300-350mm
Material of screw/barrel:38CrMoA1A,nitriding treatment
With heating before running the machine
Speed control granule size
Function:
to deep dry the wet film by screw and barrel pressure, cutting system control by speed.
Electric Cabinet
Use world famous brand elements
PLC touch screen optional
Function:
to control the line by PLC system
PP Woven Bag&LDPE Agriculture Film
Detailed Photos
Product Parameters
Certifications
Exhibition
Features
Main Features of PE agriculture film&PP woven jumbo bag washing recycling line plant:
1. Material:PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Main process:crushing, washing, drying parts.
3. Capacity: from 200kg/h to 1000kg/h.
4. Film size:70mm to 120mm.
5. Cold water sinking swimming tank can wash the common dirties, like the soil, sand, earth, stone, glass out.
6. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
7. With big capacity, double drying system can ensure the final products, PE PP flakes moisture lower than 5%.
8. With squeezing machine, the moisture level of PE PP flakes can be lower than 3%.
9. Final PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
Solution
Q&A about PE PP Film recycling machines:
1. What is the function of the PE PP film washing recycling machines?
The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
The following is a standard structure of the PE PP film washing recycling machinery:

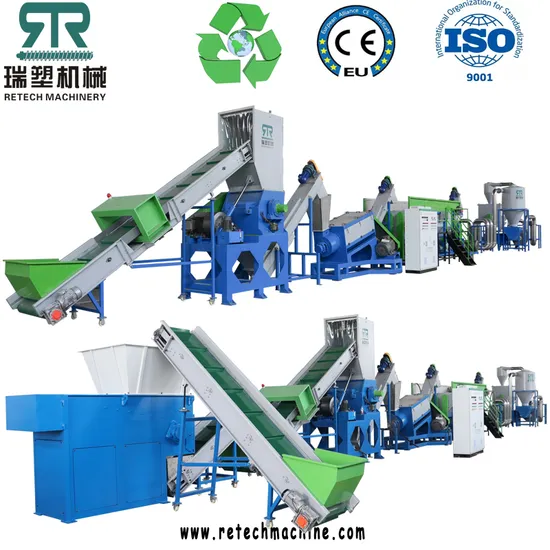

Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
300-1000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.
