Fully Continuous Waste Tyre Pyrolysis Plant to Diesel

Product Description

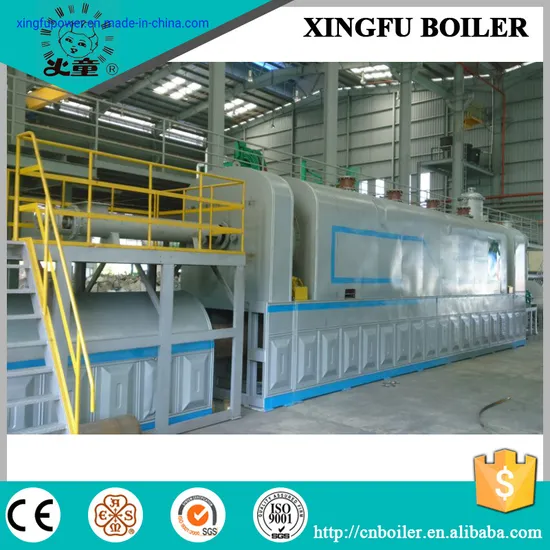

FULLY CONTINUOUS WASTE TYRE PYROLYSIS PLANT INTRODUCTION
Fully continuous waste tyre&plastic pyrolysis plant adopts automatic feeding and discharge system. Q345 steel plate as material for rotating reactor. Oil output can reach 50%-55%. Capacity from 15T to 100T. After couple of hours, Syn gas from pyrolysis generated and burn to supply energy to support the pyrolysis procedure by hot air system. Pyrolysis oil cleaned in gas treatment system and then inserted to oil distillation system, which can make it be clean diesel and petrol. Carbon black and steel wire will be separated and collected at the end of the system. This is the most advanced technology, energy saving and environmental friendly.
WASTE TRYR PYROLYSIS PLANT SPECIFICATION

Item	60 ton fully continuous type
Type	XFLJ-20
Capacity	20x3 T/D
Plant material	Q345R
Fuel Consumption in start	300kg heavy oil
Fuel Consumption in Operation	0(the syn gas from the system be burnt by the system itself)
Heating Way	Circulating hot air
Tyre size	≤20mm
Working Pressure	Normal pressure
Total Power	100 kw
Boundary Dimension	14000mm(L)×2250mm(W)×3750mm(H)
Floor Space	36000mm×8000mm
The Highest Install Elevation	5000mm
Labor	2 workers
Working Life	8-10 year

WORKING PROCESS
Waste tyre pyrolysis in PYROLYSIS OIL To get
Waste plastic → ( circulating hot air ) → PLANT TO GET→ (distillation)→ DISTILLATION→ clean diesel
Waste rubber with 420 degree PYROLYSIS OIL SYSTEM and gasoline
( Note: this kind of diesel and gasoline is different with the oil in market, please contact me for oil detailed parameter.)
OUR SUPPLY RANGE AND SERVICE
The supply range includes:
Fully continuous type waste tyre and plastic pyrolysis plant; Capacity: 15 to 60 TPD
Semi continuous type waste tyre and plastic pyrolysis plant; Capacity: 8 to 30 TPD
Batch type waste tyre and plastic pyrolysis plant: Capacity: 10 to 30 TPD
Oil distillation plant; Capacity from 10 to 30 TPD
Carbon black granulation plant
CERTIFICATE
All pyrolysis plant and oil distillation plant meet the standard of CE, ASM and ISO. Manufacture strictly according to Industry standard. Professional welding experience for 30 years.
FAQ
1.What is our Qualification?
We are professional waste tyre and plastic pyrolysis plant manufacturer, with more than 10 years' and 30 years' boiler manufacture experience.
2.What is our product range?
We specialized in manufacturing pyrolysis plant, waste tyre and plastic recycling solution.
3.How many countries we have exported?
Our product have been successfully exported to Europe,Africa,Latin America,South East Asiacountries and areas, such like Spain, Finland, Mexico, South Africa, Malaysia, Turkey, Packistan and etc.
4.What is our Warranty Period?
The Warranty Period is ONE YEAR with lifelong service.
------------------------------------------------------------------------------------------------------------------------------

Contact with me for a complete and professional proposal.

---
