US$4,888.00-12,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Foam, Plastic Materials
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Using
Plastic Materials CNC Cut
Cutting Method
Heated Wire
Cutting Path
CAD Caxa Band5 etc.
Transport Package
Plastic Film
Production Capacity
50sets/Year
Product Description
Product Description
This machine is suitable for producing PET plastic containers and bottles in all shapes. sponge/foam, spray-bonded cotton, latex/emulsion, artificial leather, in peculiar shape without burrs on the edges.Windows operating system, CAD software. It can diagnosis automatically, and give an alarm when the blade broken.
Features of automatic plate cutting machine :
1.Special equipment for external wall insulation board.
2.lt is suitable forblock cutting of the overall plate of the outer wall, with high cutting ef-ficiency, extremely small size error, and the diagonal can be controlled atone millimeter.
3.The machine adopts double frequency conversion speed regula-tion, which is stable in operation and has a wide range of speed regulation.
4.The stepless speed regulation is between 0-4m/min, which is suitable for therequirements of slow cutting and fast pushing.
5.Adopt large-capacitymulti-head double-stage transformer, wide temperature adjustment range,convenient heating adjustment, and smooth and flat cutting marks of electricheating wire.

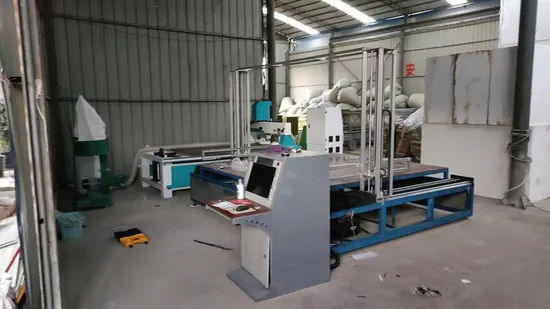

Detailed Photos
Product Parameters
Product name
| CNC plate cutter
|
Model
| QJN-6008
|
Mainly Function
| External wall insulation board cutting
|
Machine structure
| Thick steel welded
|
Max. processing length
| 6000mm(Can be customized)
|
Max. processing width
| 1250mm(Can be customized)
|
Heating power
| 10KW
|
Voltage
| 220V/380V-50HZ
|
Cutting accuracy
| ±0.1mm
|
Number of heating wire
| 50 PCS
|
Cutting speed
| 0~2.5 m/min
|
