New Style Fully Automatic Small Toilet Tissue Paper Roll Making Machine Production Line

Product Description

Product Details

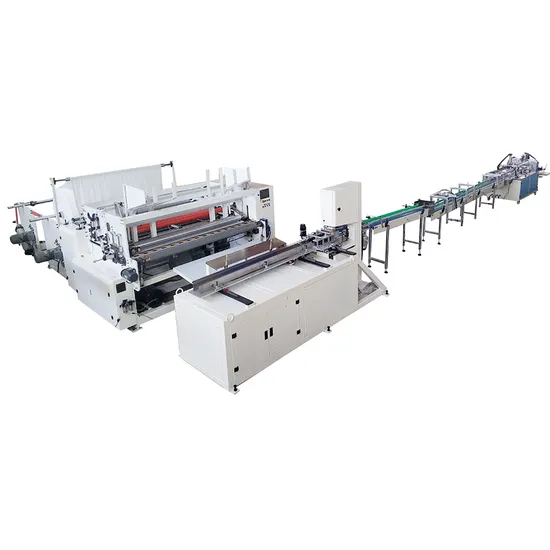

New Style Fully Automatic Small Toilet Tissue Paper Roll Making Machine Production line
Toilet paper rewinding machine
1.This equipment is to perforate and cut the raw paper into various sizes according to the requested.2.The finished product is neat, in good order and with equality tension.3.It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.4.This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. 5.There are two types of this model:A) is ordinary type, it used one embossed unit for 2 ply paper,B) other is dot-by-dot type, it used embossed units respectally for each one.6.This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.

Machine Model	CIL-SP-B
Width of Jumbo Roll(mm)	1200-3000
Production Speed	180-240m/min
Diameter of raw material	1500mm
ID of raw material core	76.2mm
Finished Products Diameter	90-130mm
Finished Products Inner Diameter	30-60mm
Embossing device	Single embossing, double embossing, steel to rubber
Weight	2.8-12T
Punching mechanism	High precision screw type 4 pcs punching knifes
Controller	PLC program
Unreeling stand	Wallboard type,2 stands
Air supply	Pressure ≥0.6mpa
Power	7.5-30KW(380v 50Hz)

Automatic toilet paper cutting machine
1,The transducer independent driver is used in the main motor;
2,The cutting knife automatically stops and gives an alarm;
3,When the paper can not be cut down,the equipment will 4,The high precision servo system is used in the feed motor servo system,to ensure the quality of the finished product;5,The equipment automatically calculate the quantity of the finished product being cut;according to the raw material and thelength of the finished product;6,When data input is incorrect,the equipment breaks off and prompts to adjust on the interface;7,The cut paper head and paper end can be automatically sorted;8,Cut with knife is used in the equipment,which reduce the use cost of the user;9,The automatic sharpening knife system is used in the equipment,can adjust the sharpening knife system according the requirement of paper being cut,which increase the cutting life;10,The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

Model	CIL-SP-400
cutting speed	80~100cuts/min
cutting log channel	single channel
log length	<=2000mm and <=3000mm
cutting length	<=250mm
cutting diameter	60-130mm
power supply	5kw 3 phase 4line 380V 50HZ
machine weight	1000KG

Semi-automatic multi rolls packing machine
1.Advanced PLC computer programming control, LCD display text operation, parameter setting, the effective protection of wearing parts, wire and high temperature heating tape;Operation: manually put rolls into the table, pack the bags, foot switch, the machine can automatically complete clamping,promoting bags, automatic fork angle, sealed. More convenient, easier to change, control is more precise.2. Packaging sealing effect beautiful, neat, accurate positioning control; adjustable high.3. Man-machine combination, significant savings in labor, reduce costs and improve production efficiency.4. Speed of paking: 12 bags/min(2roll/bag). Under the rolls of the length, height, diameter ordered. Can be customized wate cooling, playing date features.5.More stable overall performance, control components imported high-quality components for the main parts, the rest of the national standards of quality components.

Model	CIL-SP-398-3
Speed of packing	6-12 bags/min
Air pressure	0.5MPA(Customer-owned)
Power	0.4 KW( 220 V,50 HZ)
Size of machine	1600*750*1200 mm

Product Show
Company Profile

Packaging & Shipping

Certifications
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-90 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
