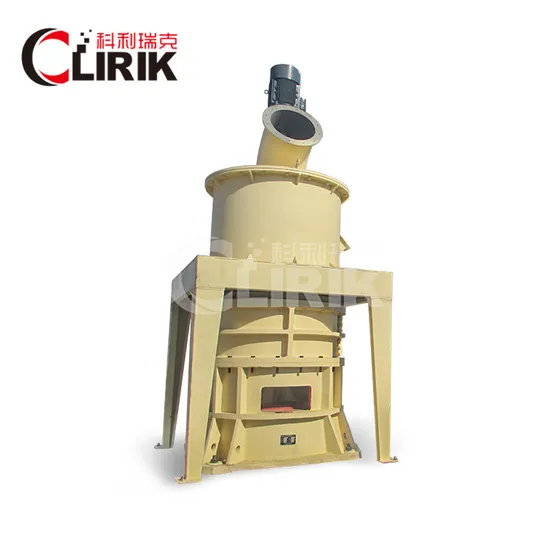

Hgm 80 Mica Powder Grinding Mill for Graphite Mica Calcite Kaolin Barite Bentonite Powder Factory in Singapore

Product Description

Powder grinding south africa/pulverizer machine manufacturer:
- - Five models: HGM80, HGM90, HGM100, HGM100A, and HGM125
- - Finished production fineness: 300meshes~3000meshes, 5-47 micron
- - The capacity (ton/hour) ranges from 0.4T/H to 12T/H
Application of powder grinding south africa/pulverizer machine:
HGM Series Powder grinding south africa/pulverizer machine is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Work Principle of powder grinding south africa/pulverizer machine:
HGM series powder grinding south africa/pulverizer machine mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
Videos of Work Principle:
https://shclirik.en.made-in-china.com
https://shclirik.en.made-in-china.com
Features of powder grinding south africa/pulverizer machine:
High Efficiency
Under the same finished final size and the same motor power, the capacity of powder grinding south africa/pulverizer machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization, the lifetime can reach 2-5 years for grinding calcite carbonate.
High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤ 5μ M.
Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Customer Case of powder grinding south africa/pulverizer machine:
Parameter of powder grinding south africa/pulverizer machine:
Parameter1

Model	HGM80	HGM90L	HGM100L-II HGM100P	HGM125L	HGM168L
Ring Diameter (mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3	4	4	4
Roller Number (PCS)	18-21	24-29	28-36	30-40	30-44
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤20	≤20	≤20	≤20	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-8 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.5-5.5	0.8-6.5	1.2-10 1.2-11	2.5-20	5-45
Outlet Size L*W*H (m)	15.1*4.2*7.3	18.4*3.9*7.8	22.7*3.6*8.5	27.3*4.2*9.9	31.7*7.7*12.6
Note:The capacity is based on the domesitlc CaCO3 Powder factory's feedbackNote:The capacity is based on the domesitlc CaCO3 Powder factory's feedback

Parameter2

Unit KW	HGM80	HGM90L	HGM100L-II HGM100P	HGM125L	HGM168L
Main Unit	75	2*45	132-150	185-200	315
Classifier	18.5	18.5-30	30-37	75	132
Blower	45	55	75	2*45-2*55	2*75-2*90
Crusher	18.5	18.5	18.5	45	75
Bucket Elevator	3	3	4	4	7.5
BeltConveyor Feeder	1.5	1.5	1.5	1.5	2.2
Discharging Valve	2*0.75	1.1	1.1	1.5	2*1.5
Air compressor	11	15	22	37	55
Note:For the data with prefix such ad "2xx",which means there are two same motors configured for one item

Other Product Offered
Our Company
Inquiry service
More details we needed for sending you more suitable quotation,
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our micron grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final and forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We are looking forward to your inquiries!

---
