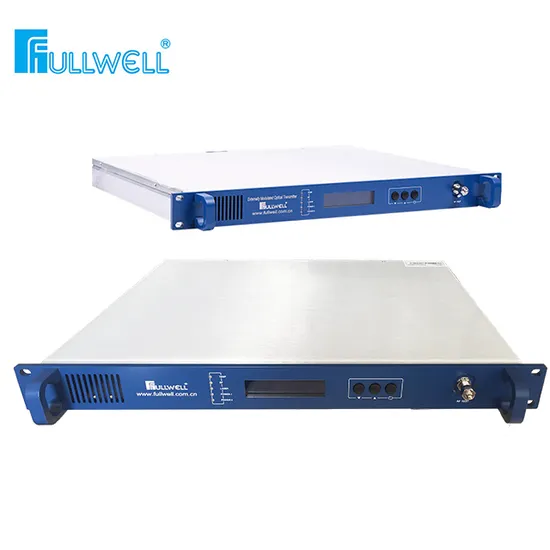

FTTH Multi Port 2X9dB Output 1550nm External Modulation Optical Transmitter

Product Description

Items			Parameter	Remark
Optic Parameters	Operating wavelength	(nm)	1550±10
	Output power	(dBm)	2×9	2×7, 2×8, 2×9,2×10, 2×11, 2x12
	Return loss	(dB)	≥52
	Optical fiber connector		SC/APC	Optional SC/APC,FC/APC
RF Parameters	Bandwidth	(MHz)	47~860 or 47~1080
	Input level	(dBmV)	23±5	AGC
	Flatness	(dB)	≤±0.75	45~(862)1080MHz
	Return loss	(dB)	>16	45~750MHz
	Input Impedance	(Ω)	75
Link Parameters	Channels		PAL-D/60ch
	CNR	(dB)	≥53	65Km fiber,Receive0dBm
	CTB	(dB)	≤-65
	CSO	(dB)	≤-65
	SBS	(dB)	≥16.0	13~19dB adj.
General Parameters	NM interface		RJ45
	Power	(V)	90~265	Optional -48VDC
	Power consumption	(W)	≤50
	Working Temp	(ºC)	0~50	Automatically casing temp control
	Storage Temp	(ºC)	, '-20~85
	Operating relative humidity	(%)	5~95
	Size	(")	19×14.5×1.75	(W)x(D)x(H)

FAQ: Q1: Are you a factory or trading company? A: We're a professional trading company with excellent cooperative factories. Q2: Where is your company located? A: Our company is located in Hangzhou City, Zhejiang Province, China. All our clients, from home or abroad
are warmly welcomed to visit us! Q3: Do your products safe enough? A: Our products meet with the certificate of CE, ISO & Rosh. Our products are made according to the
standard of the market in our clients. They're all in superior quality & competitive price. You can rest
assure that they are safe enough. Q4: How long does your warranty provide? A: We usually provide you a 2-year warranty after the date we sold under normal usage.
Q5: What's your payment terms?
A: T/T, Western Union, Money Gram
Q6: What's your delivery time?
A: Around 8 working days after getting payment in the account ( or pre-payment)
Q7: Can you accept OEM?
A: Yes. We would accept OEM&ODM.
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."

---
