Basic Info.
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Arbor Configuration
Vertical Shaft
Transport Package
Steel Frame/Plywood Case
Specification
Walking Hand Tractor 8HP-22HP
Production Capacity
6000/Year
Product Description
LIFTOR Agricultural Machinery /Thailand Power Tiller / Walking Tractor /hot sale price
LIFTOR walking tractor / hand tractor, it is a small tractor, a means of transportation and agricultural machinery popular in Chinese villages and towns. It is powered by a diesel engine. Its compact, flexible and powerful features make it very popular with farmers.
LIFTOR Tractor Features:
1. Light weight, compact model, flexible operation, strong adaptability
2. Equipped with different implements, such as: plough, rotary tillage, leveling, soil crushing and so on.
3. With trailer, it can also carry out short distance.
Tractor Parameter:
Model of Power Tiller
| 12HP
| 15HP
| 16HP
| 18HP
| 20HP
| 22HP
|
Structure weight(kg)
| Without rotavator
| 353
| 363
| 363
| 363
| 393
| 393
|
With rotavator
| 458
| 468
| 468
| 468
| 513
| 513
|
Turning speed of rototilling shaft(rpm)
| 188/300
|
Overall dimensions (LxWxH)(mm)
| 2680×960×1250
|
Number of blades(PCS)
| 18
| 24
|
Rototilling width(mm)
| 600
| 800
|
Type of tractor
| Single axle, dual-purpose for both traction & drive
|
Wheel track(mm)
| 800,740,640,580(normally use 800)
|
Package and size(m)
| Wooden cases1.13*1.1*1.1
| Wooden cases1.13*1.1*1.15
|
Gross weight
| Net weight(kg)
| 525/465
| 535/475
| 535/475
| 535/475
| 575/515
| 575/515
|
Type of engine
| Horizontal 4-stroke , Hand start
|
1-hour rated output(kw/hp)
| 9.3/12.65
| 10.5/14.3
| 10.5/14.3
| 13.34/18.15
| 14.7/20
| 14.7/20
|
12-hour rated output(kw/hp)
| 8.3/11.29
| 9.8/13.33
| 9.8/13.33
| 12.13/16.5
| 13.23/18
| 13.23/18
|
Specific fuel consumption(g/kw.h)
| ≤258
| ≤250
| ≤250
| ≤246.2
| ≤244.8
| ≤244.8
|
Specific lube oil consumption
| ≤2.04
| ≤2.00
| ≤1.47
| ≤1.47
|
LIFTOR Hand Tractor Details:
Hand Tractor Implements:

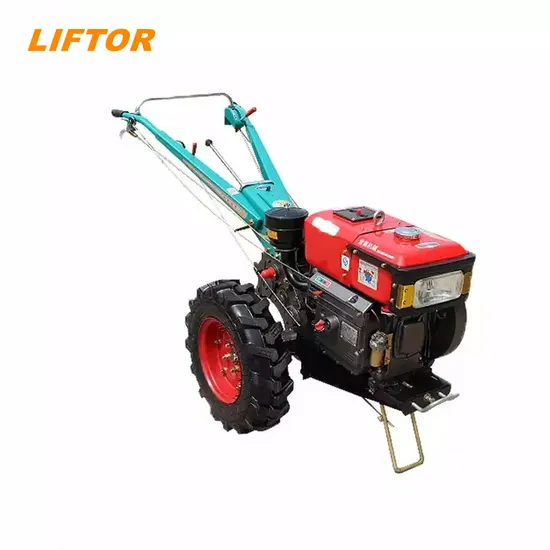

Hand Tractor Picture:
Package:
About US:
"Liftor Enterprises" is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric storage,intelligent industrial system, agriculatural tractor, lifting machine and wheel loader. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics. Why Choose US?
1. The quality is guaranteed due to strong technical support, high quality component, advanced production line and strict quality control system.
2 .One-stop service with a large spare parts warehouse and professional service team. No matter where you are, you are guaranteed of Ensign' s warm reception, trustworthy and efficient professional services and persistent care.
Other terms:
1. Delivery: 30 days for normal orders
2. Price: We have price on basis FOB Qingdao and CIF or CFR your destination for your choice
3. Payment terms for first order: T/T 30% down payment and balance before shipment
4. Payment for long terms cooperation of good reputation partners, we have SINOSURE or Euler Hermes insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
>>
