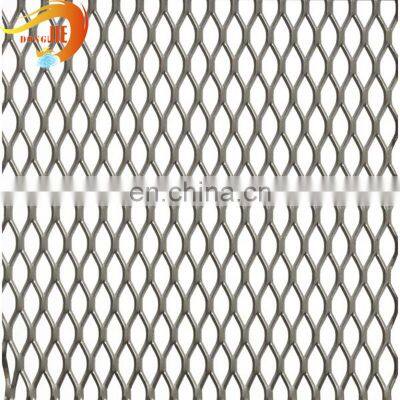

Aluminium Expanded Metal Mesh/Aluminium Sheet
Aluminum Expanded Metal is a sheet product that has been slit and stretched to a wide array of diamond shaped openings. Aluminum Expanded Metal offers savings in weight and metal, free passage of light, liquid, sound, and air, while providing a decorative or ornamental effect.
⟨Characteristics of Aluminium Expanded Metal Mesh ⟩
One of the benefits from the manufacturing of expanded metal is that the sheet retains its structural integrity because it has not undergone the stress of having shapes punched in it (like perforated sheet), and the mesh-like pattern will not unravel (like woven mesh can do). Expanded metal has been stretched rather than punched, reducing scrap metal waste; making it cost-effective. The main considerations when using expanded metal will be the chosen thickness and strand dimensions (weight and structural design requirements). Expanded metal can be almost transparent (depending on the opening); it has mechanical properties and is an excellent conductor.
| Aluminium Sheet/Aluminium Expanded Metal Mesh Specifications |
Mesh Thickness
(mm)
| SWM
(mm)
| LWM
(mm)
| Strip
(mm)
| Width
(m)
| Length
(M)
| Weight
(kg/m2)
|
0.5
| 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
Aluminium Expanded Metal Mesh Specialty:
Expanded metal sheet is made by first creating multiple slits in the sheet, and then stretching the sheet. The stretching creates a unique diamond pattern opening with one of the strands protruding at a slight angle. These raised strands can be flattened later in the process if desired. As you can see this process creates no waste (thus keeping down production costs) and it can add structural strength to the product.
| Raised Aluminium Expanded Metal Mesh |
| | Mesh Size LW: 10.24MM
Mesh Size SW: 5.64M
Strand Width: 1.55MM
Strand Thickness: 0.90MM
Open Area Norm: 42%
Open Area Max: 57%
Weight: 1.496 Kgs/Sht
Sheet Size LWM: 1220MM
SWM: 1250MM
|
| | Mesh Size LW:5.84MM
Mesh Size SW:3.50MM
Strand Width:0.79MM
Strand Thickness:0.56MM
Open Area Norm:51%
Open Area Max:62%
Weight:0.506kgs/sht
Sheet Size:1250MM
SWM:1250MM
|
| | Mesh Size LW:28.58MM
Mesh Size SW:9.52MM
Strand Width:1.98MM
Strand Thickness:1.20MM
Open Area Norm:58%
Open Area Max:58%
Weight:4.00kgs/sht
Sheet Size:2500MM
SWM:1250MM
|
Flatted Aluminium Expanded Metal Mesh
|
Mesh Size LW:6.86MM
Mesh Size SW:3.56MM
Strand Width:1.27MM
Strand Thickness:0.89MM
Open Area Norm:52%
Open Area Max:52%
Weight:2.858kgs/sht
Sheet Size:1250MM
SWM:2500MM
|
|
Mesh Size LW:13.97MM
Mesh Size SW:4.83MM
Strand Width:1.80MM
Strand Thickness:0.89MM
Open Area Norm:57%
Open Area Max:57%
Weight:3.060kgs/sht
Sheet Size:1250MM
SWM:2500MM
|
|
Mesh Size LW:35.05MM
Mesh Size SW:11.94MM
Strand Width:2.34MM
Strand Thickness:1.14MM
Open Area Norm:71%
Open Area Max:71%
Weight:2.530kgs/sht
Sheet Size:2500MM
SWM:1250MM
|
|
About Our Expanded Mesh---DongJie
Our Expanded Metal Mesh is available from stock. As a largest manufacturer of expanded metals, we are able to offer Mild Steel Expanded Mesh, Stainless Steel panels and Aluminium Expanded sheets, all of which are available in a range of grades, with the most common being hot rolled, cold reduced, elector-zinc and galvanized steel and all conforming to the relative quality standards.
Expanded metal also comes as raised mesh or flattened mesh with different hole apertures and thicknesses to suit your individual applications. All materials can be coated using various methods, i.e. Galvanizing, painting, powder coating etc.
Stock here, it's very convenient for you and can save your time.
Go, Lets see Aluminium Expanded Mesh Applications!
The versatility of expanded metal makes it a suitable material for multiple applications such as: security screens, balustrade infill panels, and walkway mesh. In architecture it can be used as cladding or in the construction of bridges, ornamental features and art displays.
Industrial applications include exhibition stands, window guards, cages, shelving and expanded metal flooring. In the automobile industry it is used as car grilles, radiator grilles and as filtration systems. Where security precautions are important, security lathing is another use for expanded metal, and in fencing applications, it is often used when erecting scaling barriers. Some domestic applications include indoor and outdoor furniture, ceiling tiles etc.
Aluminium Expanded Metal Mesh Packaging
There are two options for the packaging:
Option ONE---packed in rolls.
1. Roll the mesh.
2. Packed with craft paper one roll by one roll.
3. In the paper box and using the buckle fastener, make it more tight and safe.
Option TWO---packed in piece.
1.One pc by one pc using the paper or foil.
2.Put in the high quality wooden carton.
3.Or as your required.
