115HP OUTBOARD MOTOR

Product Description

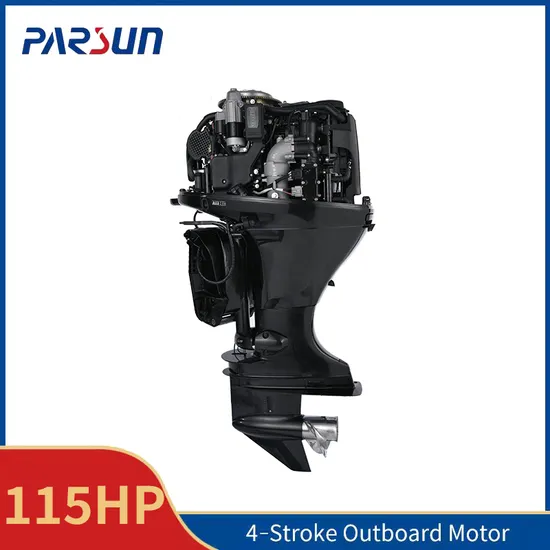

PARSUN 115HP 4-Stroke Electronic Fuel Injection Outboard Motor
Product Description 1. All aluminum designing engine without the cylinder sleeve, Four-cylinder in-line, 16-Valve, Common rail injector, Electronic multi-point fuel injection provides perfect blend of smooth and economic performance.
2.Twin camshafts, each driven independently, intake and exhaust efficiency are dramatically improved, optimizing fuel use during combustion.
3. Timing belt is automatically controlled by tensioner, Extend the service life and the performance is more reliable.
4.Multi-stage fuel filtration: fuel-water separator, build-in fuel filter and high pressure filter, Water content sensor, ensure the fuel is clean and reliable.
5.Light weight and compact Power Trim and Tilt unit.
6.With reliable Delphi E.F.I. system and multifunction diagnostic software, F115 is of high quality, long life and easily maintenance, whilst cutting your fuel and maintenance costs.
7.PARSUN four stroke 115HP EFI engine is controlled by the ECU unit , which ensures the precise amount of air necessary for optimum power and fuel efficiency. Several different sensors continuously monitor the engine's critical functions, They will send out special signals to inform you in advance, such as Over-Rev Limiter, Over-Heat Warning, Start-in-Gear Protection, Lower Oil Pressure Warning, and automatically reduce the engine power to prevent damage.
8.Support CW&CCW propeller for twin engines system. more flexible steering.
9.Equipped with multi-function handle for tiller model. its front-mounted ignition key switch and gear shift controls, to the easy-to-use throttle control.
10.35Amp high output alternator is fitted as standard on the F115, to ensure that plenty of power is available for using multiple accessories. A comforting thought when you are out fishing - at night - or planning a long, lazy day on the river.
PARSUN 115HP 4-Stroke Electronic Fuel Injection Outboard Motor Specifications

Item		F115BEX-T-EFI	F115FEX-T-EFI
Overall length	mm(in.)	1559(61.4)	821(32.3)
Overall width	mm(in.)	518(20.4)
Overall height	mm(in.)	1800(70.9)
Transom height	mm(in.)	635(25.0)
Weight	kg	179	185
Full throttle operating range	r/min.	5300~6300
Maximum output	Kw(HP)@ r/min.	84.6(115)@5800
Idling speed(Neutral)	r/min.	700~800
Engine type		4 stroke, DOHC
Cylinders		L4 / 16 valves
Displacement	cm3	1832
Bore x stroke	mm(in.)	81.0×88.9(3.19×3.5)
Ignition system		T.C.I.
Fuel delivery system		Electric Fuel Injection
Ignition timing		Micro Computer
Control system		Tiller control	Remote control
Starting system		Electric start
Gear positions		Forward-Neutral-Reverse
Gear ratio		2.15(28/13)
Trim and tilt system		Power trim & tilt
Max. fuel consumption	L/h(HP)@ r/min.	38.9(115)@5800
Engine oil capacity (Without oil filter)	L	3.0
Gear oil capacity	cm3	760(Regular rotation model) / 715(counter rotation model)
Propeller options	in.	3-131/4"x17" , 3-131/4"x15" or 3-131/4"x13"
