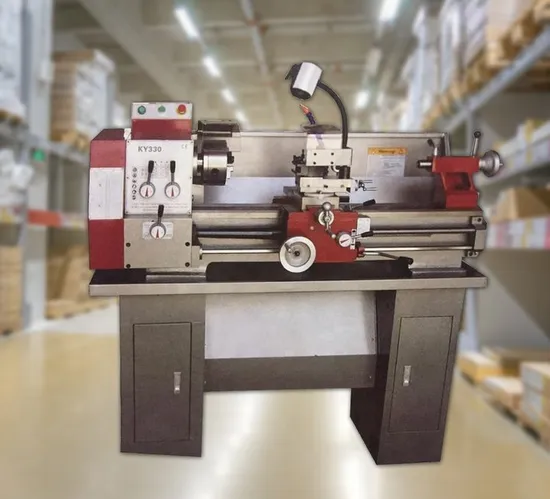

Low Price Multi Purpose Variable Speed Bench Lathe Machine (KY330)

US$1,280.00-1,450.00 3 Sets (MOQ)

Basic Info.

Model NO.
KY330
Warranty
12 Months
Customized
Customized
Condition
New
Product Name
China Engine Lathe
Spindle Bore
38mm
Top Slide Travel
100mm
Cross Slide Travel
160mm
Width of Bed
160mm
Motor
1100W/220V/50Hz(110V/60Hz)
Net Weight
250kg
Taper of Spindle Bore
Mt.5
3-Jaw Chuck
1 Set
4-Jaw Chuck
1 Set
Digital Redout
1 Set
Transport Package
Wooden Case
Specification
CE
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description


Features:
1.widely useful ,heavy duty bench lathe.
2.V-way bed is hardened and precision ground.
3.Spindle is supported by high quality tapered roller bearing.
4.Hardened,precision ground gears in headstock.
5.Gearbox has large feed and threading functions.
6.Carriage mounted spindle control lever.
7.Adjustable gibs for slideways.
8.Automatic feed and threading are fully inter locked.,
9.Tailstock may be offset for turning tapers.
10.Equipped with emergency stop button.
Precision Metal Lathe Description
Specification
Model No. KY330
Max. Swing over bed 330mm
Distance between centers 600mm/800 mm
Max. Swing over cross slide 210mm
Spindle Bore 38mm
Taper of spindle bore MT.5
Width of bed 160mm
Range of metric thread 17/0.5~4 mm
Range of Inch thread 20/40-9 TPI
Range of longitudinal-feed 0.175~1.396mm/r
Range of cross-feed 0.037~0.296mm/r
Top slide travel 100mm
Cross slide travel 160mm
Max. travel of tailstock sleeve 70mm
Taper of Tailstock sleeve MT.3
Step of Spindle speeds 12
Range of Spindle speeds 60~1650mm/r
Motor 1100w/220v/ 50HZ (or110v/60HZ)
Net weight 250kg
packing size 1550x770x700mm
Standard Accessories
3-Jaw chuck 1set
Chip tray & splash guard 1set
Safety chuck cover 1set
Dead centers 1set
Change gears 1set
Oil gun 1pc
Allen wrench 1set
Optional Accessories
4-Jaw chuck 1set
Steady rest 1pc
Follow rest 1pc
Face plate 1pc
Rolling center 1pc
Steel Cutter(6pcs) 1set
Stand 1pc
Working lamp 1pc
Leadscrew cover 1set
Coolant system 1set
Foot brake system 1set
Quick change tool post 1set
Digital Readout 1set
