Used Balloon Padder, Detwister, Roped Fabric Opener, Dewatering, Detwisting Machinery

US$30,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Material
Tubular Knitte Fabric
Voltage
350V
Load Capacity
>2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Weight
4.5tons
Transport Package
Wooden Pallets
Specification
7700mm* 2750mm* 4000mm
Trademark
FINESTART
Origin
China
Production Capacity
100units/Year

Product Description



Introduction

FSRZ2400 series machine is used for impregnating soften agent and hydro-extractor process of the tubular fabrics, it can be substitute for centrifugal machine and wet expander. It is high efficient and easy to operate.
Basic Info
Model FSRZ1400
Name Ballon Padding Machine
Function Ballon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric,
then padding the residual liqiud. it can be substitute for the traditional process of centrifugal machine and wet expander.
It is high efficient and easy to operate.
Suitable Fabric Wet tubular knitted Fabric
OEM FINESTART
Year of Manufacture 2018
Technical Dates
Working Width 1400mm
Working Speed 3-45m/min
Installed Power 11.45kw
Dimension (7700mm×2750mm×4000mm)L*W*H
Weight Approx. 5.8T
Compressed Air 0.35-0.6MPa
Color Blue/Customize

No Main Parts Explanation

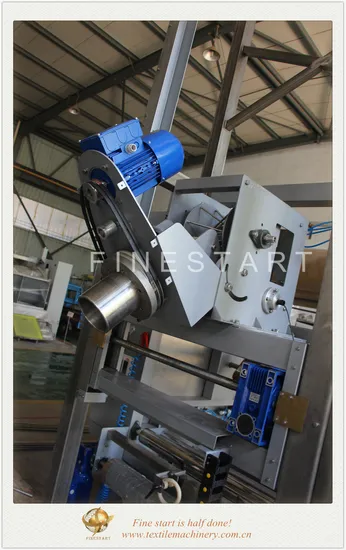

1 Turning Table Turn table is driven by motor, it can turn clockwise or anticlockwise according to untwist needing.
2 Detwister Detwister will auto detwist the roped fabric and infeed smoothly
3 Ring Guider Fabrics guide rings position (fabrics working breadth) is adjusted through lead screw, lead screw is driven by motor
4 Trough Make it by 316L stainless steel,anti-corrosion from the chemical liquid
5 Auto Blower After detwisting,the blower will inject air into fabric,it will be favor to utmost impregnate the chemical agent on fabric
6 Squeezer Squeezer consists of 2 sets rubber roller and 2 sets Pneumatics cylinder.
The pressure of the squeezing roller is adjusted by two sets reduce valve.
The water squeezing device and softener expression device are driven by one motor separately,
the two motors are controlled by inverter.
7 Tension Regulator Set with a regulation-resistance to adjust tension between squeezing roller and delivery device.
Energy Consumption
No Item Consumption
1 Driving System 11.45KW
2 Steam 50-100kg/h
Loading
1 1*20GP


Other Products
Production Line
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
